Titanium 90° Elbow

Titanium 90° elbow is the ideal solution for building high-performance titanium exhaust systems.

Each elbow is ultrasonically cleaned before delivery to ensure a spotless, weld-ready surface right out of the box.

If you're looking for a lightweight, durable, and easy-to-weld titanium elbow, this is the one to choose.

Titanium 90° elbows specifications

• ASTM B363, ASTM B861-13
• ASME SB-363, SB-861-13
• EN 10204 3.1
• NACE MR0175 / MR0103
• NORSOK M-650
• Dimensional tolerances comply with ASME B16.9.
• Wall thickness meets ASME B36.19M for Schedule 10S and 40S.
• Fittings are permanently marked by electrochemical etching per ASME B16.9.

Titanium 90° elbows are manufactured strictly in accordance with ISO 9001:2015 and AS9100:2018 standards.

Certified by AS9100, AS9120, and ISO 9001, they are widely trusted by leading OEMs in aerospace, medical, industrial, and oil & gas sectors.

Popular titanium 90° elbows

The 90° titanium elbows are available in the following grades: Grade 1 (UNS R50250), Grade 2 (UNS R50400), Grade 5 (UNS R56400), and Grade 7 (UNS R52400).

We offer personalized customization services for titanium products, including color, size, and more, based on your specific needs.

Chalco offers a full range of 90-degree titanium elbows in various sizes and connection types, including threaded, butt weld, and NPT.

Browse our in-stock elbows ranging from 1/2″ to 8″ diameter or request a quote for a custom solution. Quick Quote

90° loose radius elbow

Other sizes of 90° loose radius elbow:

90° tight radius Elbow

Other sizes of 90° tight radius elbow:

Small batches supported, no MOQ — easy and flexible ordering.

Full size chart of titanium 90° elbows

Titanium 90° elbows are available in Schedule 10S and 40S, with dimensional tolerances, wall thickness, and electrochemical marking conforming to ASME B16.9 standards.

ASME B16.9 90° elbow dimensions

Nominal Pipe Size in	Nominal Pipe Size mm	Outside Diameter in	Outside Diameter mm	Center to Face in	Center to Face mm
1/2″	15	0.84	21.34	1.50	38.10
3/4″	20	1.05	26.67	1.13	28.58
1″	25	1.32	33.40	1.50	38.10
1-1/4″	32	1.66	42.16	1.88	47.63
1-1/2″	40	1.90	48.26	2.25	57.15
2″	50	2.38	60.33	3.00	76.20
2-1/2″	65	2.88	73.03	3.75	95.25
3″	80	3.50	88.90	4.50	114.30
3-1/2″	90	4.00	101.60	5.25	133.35
4″	100	4.50	114.30	6.00	152.40
5″	125	5.56	141.30	7.50	190.50
6″	150	6.63	168.28	9.00	228.60
8″	200	8.63	219.08	12.00	304.80
10″	250	10.75	273.05	15.00	381.00
12″	300	12.75	323.85	18.00	457.20
14″	350	14.00	355.60	21.00	533.40
16″	400	16.00	406.40	24.00	609.60
18″	450	18.00	457.20	27.00	685.80
20″	500	20.00	508.00	30.00	762.00
24″	600	24.00	609.60	36.00	914.40

90° titanium elbows – schedule 10S wall thickness & weight

Wall Thickness in	Wall Thickness mm	Inside Diameter in	Inside Diameter mm	Approx. Wt in Lbs./Kgs. lb	Approx. Wt in Lbs./Kgs. kg
0.67	17.12	0.08	2.11	0.08	0.04
0.88	22.45	0.08	2.11	0.09	0.04
1.10	27.86	0.11	2.77	0.17	0.08
1.44	36.63	0.11	2.77	0.29	0.13
1.68	42.72	0.11	2.77	0.39	0.18
2.16	54.79	0.11	2.77	0.65	0.29
2.64	66.93	0.12	3.05	1.08	0.49
3.26	82.80	0.12	3.05	1.54	0.70
3.76	95.50	0.12	3.05	2.14	0.97
4.26	108.20	0.12	3.05	2.72	1.23
5.30	134.49	0.13	3.40	4.58	2.08
6.36	161.47	0.13	3.40	6.86	3.11
8.33	211.56	0.15	3.76	13.50	6.12
10.42	264.67	0.17	4.19	25.00	11.34
12.39	314.71	0.18	4.57	34.00	15.42
13.62	346.05	0.19	4.78	46.00	20.86
15.62	396.85	0.19	4.78	60.00	27.21
17.62	447.65	0.19	4.78	75.00	34.01
19.56	496.93	0.22	5.54	126.00	57.14
23.50	596.90	0.25	6.35	177.00	80.27

90° titanium elbows – schedule 40S wall thickness & weight

Wall Thickness in	Wall Thickness mm	Inside Diameter in	Inside Diameter mm	Approx. Wt in Lbs./Kgs. lb	Approx. Wt in Lbs./Kgs. kg
0.62	15.80	0.11	2.77	0.10	0.05
0.82	20.93	0.11	2.87	0.11	0.05
1.05	26.64	0.13	3.38	0.20	0.09
1.38	35.05	0.14	3.56	0.32	0.15
1.61	40.89	0.15	3.68	0.50	0.23
2.07	52.50	0.15	3.91	0.89	0.40
2.47	62.71	0.20	5.16	1.72	0.78
3.07	77.93	0.22	5.49	2.75	1.25
3.55	90.12	0.23	5.74	3.57	1.62
4.03	102.26	0.24	6.02	5.26	2.39
5.05	128.19	0.26	6.55	8.65	3.92
6.07	154.05	0.28	7.11	13.75	6.24
7.98	202.72	0.32	8.18	27.00	12.24
10.02	254.51	0.37	9.27	48.50	22.00
12.00	304.80	0.38	9.53	75.00	34.01
13.25	336.55	0.38	9.53	89.00	40.36
15.25	387.35	0.38	9.53	116.00	52.61
17.25	438.15	0.38	9.53	154.00	69.84
19.25	488.95	0.38	9.53	189.00	85.71
23.25	590.55	0.38	9.53	265.00	120.18

If you don't see a size that meets your project needs, we offer custom solutions — feel free to contact us anytime. Quick Quote

Advantages of titanium 90° elbow

• Lightweight yet high-strength, helping reduce overall system weight without compromising performance.
• Maintains stable performance under high temperatures—ideal for exhaust and high-temp piping systems.
• Clean surface supports efficient TIG welding and easy processing.
• Excellent fatigue and stress corrosion resistance ensures long service life.
• 90° bend design simplifies directional changes and saves installation space.
• Outstanding corrosion resistance makes it suitable for harsh environments like acid, alkali, and seawater.

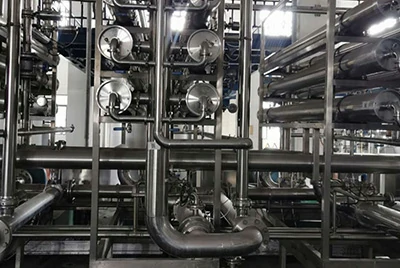

Titanium 90° elbow applications

Our team of experts is ready to help you find the perfect titanium elbows and fittings to match your project needs.

Contact our professional sales team today to explore our extensive inventory and experience unmatched customer service. Quick Quote

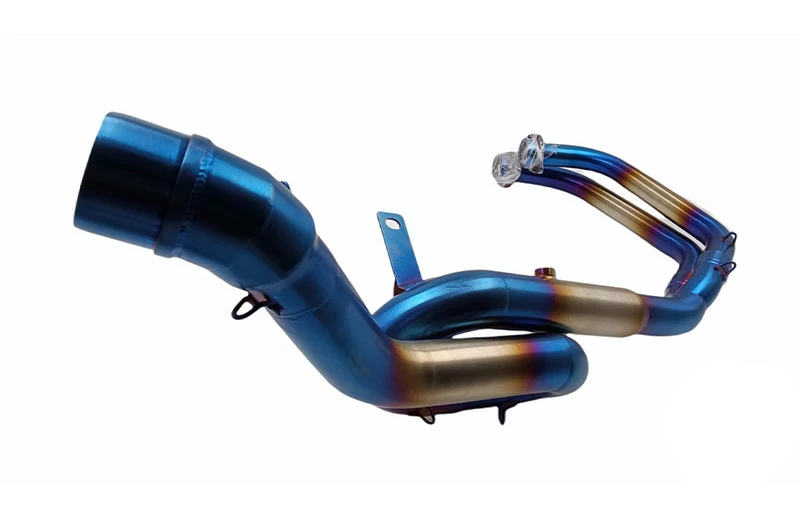

Real-world case – racing exhaust projects

In North America, titanium 90° elbows are widely used in racing and high-performance modified vehicle exhaust systems.

Compared to traditional stainless steel elbows, titanium offers clear advantages: lighter weight, higher temperature strength, and superior corrosion resistance. It's the perfect choice for builds focused on power and lightweight structure.

Chalco provides multiple radius options (1D to 1.5D) to support compact layouts. These elbows adapt easily to complex areas like turbo connections and chassis bends—ideal for American, German, and Japanese tuning projects.

We've supplied custom solutions in bulk to numerous North American racing and exhaust system manufacturers. Our clients span multiple U.S. states, with applications in SCCA race cars, street performance builds, and aftermarket exhaust brands.

Contact us today for technical advice, samples, or size-matching support to help optimize your exhaust system. Quick Quote

Why choose us

We're not just a top-tier manufacturer—we're also a reliable, well-stocked supplier with over a decade of experience in titanium elbow production and sales.

We believe customer satisfaction is the driving force behind our growth.

• Each product is thoroughly inspected for size, tolerance, performance, and surface quality before shipping. Material certificates are included, and third-party testing is available upon request.
• We offer a range of processing services, including cutting, beveling, welding, polishing, and custom lengths.
• Small batch orders are welcome, whether for sampling or low-volume projects.
• Customization is available for size, bend angle, wall thickness, connection type, and surface finish.
• Every customer matters—no matter the order size, we promise to respond within 24 hours.
• Professional packaging ensures safe delivery to clients worldwide.
• We maintain regular stock of standard sizes and offer fast delivery for urgent projects.

If you're unsure about product selection or standards, our engineering team is ready to offer expert advice and help you choose the best-fit solution.

View all titanium pipes and fittings products

Browse all our titanium piping and fitting products—available in various specifications and customizable options.

Comparison table: titanium vs. stainless steel vs. aluminum elbows

Use the table below to help choose the most suitable piping material for your project.

•

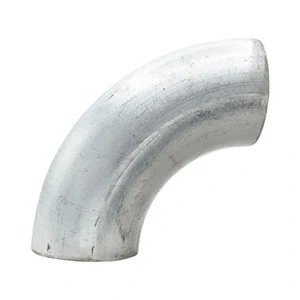

  Aluminum elbowsChalco offers high-performance aluminum elbows suitable for various lightweight piping systems.

•

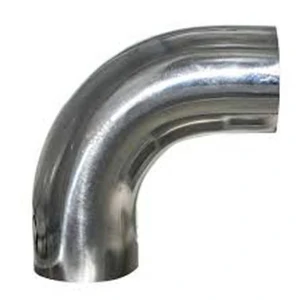

  Stainless steel elbowsChalco also supplies premium stainless steel elbows for piping systems in high-strength and highly corrosive environments.

Titanium 90° elbows packaging and shipping

Before shipping, titanium 90° elbows undergo thorough cleaning and are protected with multi-layer packaging—anti-scratch foam, bubble wrap, sealed plastic bags, reinforced cartons, and fumigated wooden crates. This ensures the elbows stay clean, undamaged, and deformation-free during long-distance transport.

We also offer custom labeling and alloy grade marking upon request. Various international shipping methods are available, including air freight, sea freight, and express delivery, to meet different lead time requirements.

Our packaging and logistics solutions are trusted by global clients and are especially suitable for applications with strict precision and cleanliness demands.

If you have special packaging or delivery requirements, feel free to contact us. We’ll provide the best-fit solution and fast delivery.

45° elbow vs 90° elbow – key differences

• Choose a 45° elbow if you prioritize smooth flow and minimal pressure loss
• Choose a 90° elbow if you need sharp directional changes and better space utilization

For more details, check out our blog with a full comparison guide.

Dimension	45° Elbow	90° Elbow
Bend angle	Changes direction by 45°	Changes direction by 90°
Flow resistance	Smoother flow, lower resistance and pressure drop	Sharper turn, higher resistance, ideal for tight layouts
Typical applications	Chemical fluids, drainage, high-speed flow systems	Widely used in industrial, exhaust, and hydraulic systems
Space requirement	Takes less space, ideal for gradual redirection	Requires more space, fits sharp turns in compact areas
Welding process	Smaller angle, easier to align	Standard angle, easier to install
Common use cases	Piping with gentle turns to reduce impact	Systems with sharp directional changes or limited space
