Titanium Alloy Seamless Pipe vs Welded Pipe
Updated : Jul. 9, 2025Titanium alloys have long been widely used in high-demand fields such as chemical equipment, marine engineering, medical equipment, and aerospace due to their excellent corrosion resistance, strength-to-weight ratio, and service life. In the actual selection process, we often face the following question: should we choose "seamless pipe" or "welded pipe"?
From the appearance, they may not be much different, but there are obvious differences in manufacturing process, performance, optional specifications, cost control, etc. Choosing the right titanium alloy tube type not only affects product quality and service life, but is also directly related to project cost and delivery control.
- The seamless titanium tube is integrally formed by perforation, hot rolling and other methods. It has no welding structure and has more uniform mechanical properties and higher-pressure bearing capacity.
- Welded titanium tubes are made by rolling and welding titanium plates, and have the advantages of more flexible size selection and better cost-effectiveness.
| Seamless pipe vs welded pipe overview comparison chart | ||
|---|---|---|
| Comparison Dimensions | Seamless Titanium Tube | Welded Tube |
| Structural features | The tube body is integrally formed without welds. | Titanium sheet rolled and welded, weld visible |
| Manufacturing process | Piercing → Rolling/Drawing → Heat Treatment | Rolling into a circle → welding → heat treatment |
| Mechanical properties | Consistent overall performance and strong pressure resistance | Slightly weak weld area, good overall performance |
| Corrosion resistance | Very good, few dead angles in welds | Good, welds may become corrosion sensitive points |
| Size Customizability | Limited in size, making it difficult to manufacture ultra-large diameters | Highly flexible, large diameter/long tubes can be customized on demand |
| Surface and precision | High precision, smooth inner and outer walls | Need to process the weld, the accuracy is slightly lower |
| Cost and delivery | High cost and long delivery time | Low cost and fast delivery |
| Applicable scenarios | Medical, aviation, high voltage system, military industry | Heat exchangers, pressure vessels, chemical pipelines, structural parts, etc. |
The essential difference in manufacturing process
Seamless titanium tube: one-piece molding, more stable structure
Seamless titanium tubes are made by heating titanium ingots, piercing, hot rolling, cold drawing and other processes. There is no welding process in the whole process, the tube wall is continuous, the structure is uniform, the mechanical properties are uniformly distributed, and there is no weld or welding stress on the inner and outer walls.
Welded titanium tubes: more flexible and more cost-effective

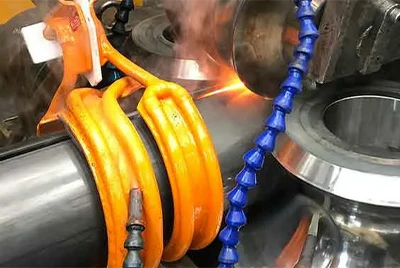

The welded pipe is made by rolling the titanium plate into a cylindrical shape, welding it into a pipe through argon arc welding and other methods, and then going through straightening, annealing, flaw detection and other processes to finally obtain the finished product.
| Manufacturing and cost differences | |
|---|---|
| Less internal stress and more complete structure | Support large-caliber and thin-wall customization, flexible specifications |
| Avoid the potential impact of welds on corrosion and strength | Mature technology, short delivery cycle, high-cost performance |
| More suitable for high pressure and high purity occasions (such as aviation, military industry, medical treatment, etc.) | More suitable for large-scale structural parts, heat exchange tubes and other engineering projects |
| Complex process, low yield rate and high cost | Quality control of the weld area is particularly critical (especially for pressure vessels) |
| Limited size range, especially for large diameter/long tubes | Some high corrosion situations may require weld grinding or reinforcement |
Performance
Mechanical properties comparison
- Seamless pipe: Because there is no welding heat-affected zone, the overall strength is more uniform and the pressure resistance is strong. It is suitable for use as a pressure-bearing and load-bearing core component.
- Welded pipe: The strength of the weld is slightly weaker, suitable for structural support or non-critical stress situations.
Corrosion resistance comparison
- Seamless pipes have obvious natural advantages, avoiding dead corners and microcracks in welds, and are particularly suitable for systems with high requirements for media and high fluid cleanliness (such as medicine, biology, ultra-pure systems, etc.).
- For welded pipes, the corrosion stability needs to be judged based on the welding quality and the service conditions. High-quality welded pipes can also meet the corrosion resistance requirements of most chemical environments.
Recommended typical application scenarios
| Application Industry/Components | Recommended tube type | Reason |
|---|---|---|
| Aerospace, military systems | Seamless titanium tube | The strength requirement is extremely high and there must be no welding defects |
| Medical devices, ultrapure systems | Seamless titanium tube | Clean inner wall, no weld dead corners |
| Chemical heat exchangers, pressure vessels | Welded titanium tube | Flexible specifications, cost-effective, suitable for batch use |
| Marine engineering structure support | Welded titanium tube | Sufficient strength and easy customization in large sizes |
| High pressure pipeline or hydraulic system | Seamless titanium tube | High pressure resistance requirements |
| General piping and drainage systems | Welded titanium tube | Economical and practical, fast delivery |
Selection suggestions and purchasing reminders
If you have strict requirements on system reliability, pipeline cleanliness or extreme working conditions (such as high pressure, high temperature, highly corrosive media, clean fluid, etc.), it is recommended to give priority to seamless titanium tubes. Its structure is complete and there is no weld weakness, which is more suitable for critical systems or high-risk occasions.
If you want to effectively control costs while ensuring basic performance, especially in applications such as large quantities, structural parts, heat exchangers or pipelines, welded titanium tubes are usually a more cost-effective choice with shorter delivery time and more optional specifications.
4 tips for you to purchase titanium tube
Clarify the working parameters - first clarify the pressure, temperature, medium and usage scenario, and decide whether to use seamless or welded pipes.
Evaluate manufacturing capabilities - select regular manufacturers with welding flaw detection or seamless perforation technology to ensure stable quality.
Request inspection documents——Require material reports, weld flaw detection records, etc. to ensure the traceability of the entire process.
Communicate customization delivery date in advance - For special specifications or export projects, customization capabilities and delivery cycles must be confirmed in advance.
Chalcotitanium professional selection support, product supply and customization services
Whether you are looking for high-precision seamless titanium tubes for high-end equipment, or need a large number of cost-effective welded titanium tubes, we can provide you with titanium alloy tube products and service support that match the working conditions, have stable delivery, and have complete standards.
Chalcotitanium titanium tube products cover:

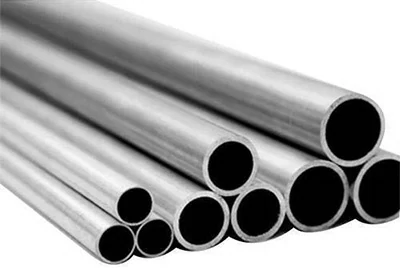

Seamless Titanium Tube
Support GB/T 3625, ASTM B861 and other standards
High dimensional accuracy, clean inner wall, consistent mechanical properties
Custom lengths, heat treatment conditions, and surface finishes are available

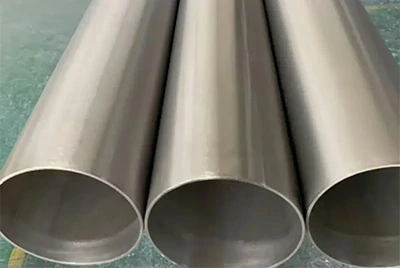

Welded Titanium Tube
High purity titanium plate coil welding, uniform and smooth weld
Large diameter, thin wall and mass customization are possible
Support the provision of quality assurance documents such as UT flaw detection, X-ray reports, water pressure testing, etc.
Chalcotitanium service advantages:
- Engineers provide one-on-one selection support and recommend the most suitable product solution based on your project conditions.
- Complete triple reports of material + flaw detection + testing, supporting third-party quality inspection or export documents
- Small batch order + personalized size customization to meet special needs projects
- Quick response and global delivery capabilities, sufficient stock of conventional specifications, guaranteed delivery of non-standard specifications
