Custom Nitinol Sheet for Medical Applications

Nitinol sheet is a functional material made from nickel-titanium shape memory alloy. Unlike conventional metal sheet used primarily for structural load-bearing, NiTi sheet uses the alloy's distinctive shape memory effect and superelasticity to recover its original shape after deformation. It is suitable for components that require repeated motion, elastic response, and precise control.

Chalco can supply custom Nitinol sheet based on project requirements, with tailored dimensions, thicknesses, surface conditions, and material properties. It is suitable for medical devices, precision machinery, and smart structure applications.

Chalcotitanium Nitinol Sheet Features

Shape Memory Effect: The material can recover its original shape when heated, enabling a functional response.

Superelastic Recovery: High elastic recovery makes the material suitable for components subject to repeated deformation and precise motion.

Corrosion Resistance: Good corrosion resistance makes the material suitable for medical and special-environment applications.

Custom Manufacturing: Thickness, dimensions, surface condition, and performance requirements can be customized.

Nitinol Sheet Materials and Specifications

Nitinol sheet is made from nickel-titanium shape memory alloy. Material condition, dimensions, and surface finish can be customized to suit medical device and precision component applications.

Item	Specification
Material	Nickel-titanium alloy (NiTi)
Standard	ASTM F2063
Alloy Type	Shape memory alloy
Nickel Content	54.5–57 wt%
Thickness	0.05–5.0 mm
Width	Customizable
Length	Customizable
Surface Condition	Cold-rolled / Pickled / Polished
Material Condition	Superelastic / Shape memory

Nitinol Sheet Performance Characteristics

This section should not present the material as a conventional metal with standard parameters. Instead, it should emphasize the functional properties of NiTi. Refer to the performance language used for your Nitinol Cable and focus on the material's value in precision applications.

Property	Typical Value
Tensile Strength	≥900 MPa
Elongation	≥10%
Recoverable Strain	≤6%
Transformation Temperature (Af)	Customizable

Note: Specific performance parameters should be confirmed based on the material condition, dimensions, and application requirements.

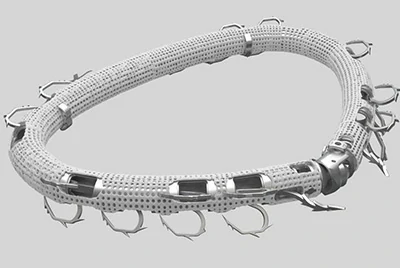

Nitinol Sheet Applications

With its shape memory effect, superelastic recovery, and good corrosion resistance, Nitinol sheet can be used in medical devices and functional components that require precise deformation, elastic response, and stable long-term operation.

Custom Nitinol Sheet Solutions

Nitinol sheet requirements vary by project, including dimensions, material condition, and performance. Chalco can provide custom Nitinol sheet solutions based on customer designs, supporting precision component projects from specification confirmation and sample evaluation through volume supply.

Custom Dimensions

Customized thickness, width, and length are available based on product design requirements to match different component structures.

Material Condition Matching

Different NiTi material conditions are available according to application requirements, including superelastic and shape memory conditions.

Surface Finish Options

Different surface conditions are available based on downstream processing and service requirements, including cold-rolled, pickled, and polished finishes.

Sample Development and Volume Supply

The supply process can cover initial specification confirmation, sample testing, and volume production, helping customers select materials and introduce them into their projects.

Manufacturing Capabilities and Quality Control

Nitinol sheet performance depends not only on the nickel-titanium alloy itself but also on melting, rolling, heat treatment, and surface treatment processes. Chalco can provide integrated support based on project requirements, from material processing and specification confirmation to quality inspection.

Nickel-Titanium Alloy Processing

Nickel-titanium shape memory alloy processing is available, with material conditions and product specifications matched to customer requirements.

Precision Rolling

Precision rolling controls sheet thickness, dimensional accuracy, and surface quality to meet the requirements of thin-gauge NiTi sheet applications.

Heat Treatment and Performance Control

Heat treatment can adjust phase transformation characteristics and functional properties to match superelastic or shape memory application requirements.

Quality Inspection and Technical Documentation

Relevant quality documentation and inspection support can be provided based on project requirements, including:

• Material composition testing
• Mechanical property testing
• Dimensional inspection
• Surface quality inspection

How to Select the Right Nitinol Sheet

Nitinol sheet selection should be determined based on the product design, service environment, and performance requirements. Customers can provide the following information so that a suitable material condition and specification can be identified.

Selection Parameter	Information to Confirm
Application	Application and component function
Thickness	Required sheet thickness
Size	Width and length requirements
Material Condition	Superelastic or shape memory condition
Surface Finish	Surface finish requirements
Quantity	Sample testing or volume purchase requirements
Drawing / Specification	Product drawing or technical requirements, if available

FAQ

1. What is Nitinol sheet?

Nitinol sheet is a functional material made from nickel-titanium shape memory alloy. It offers a shape memory effect and superelastic recovery and is suitable for precision components that require elastic deformation, functional response, and stable long-term performance.

2. What standard applies to Nitinol sheet?

Nitinol sheet can be supplied in accordance with ASTM F2063 requirements for nickel-titanium shape memory alloys. The specific material condition can be confirmed according to the customer's application requirements.

3. What Nitinol sheet thicknesses are available?

Nitinol sheet can be customized based on project requirements. Common thicknesses range from 0.05 to 5.0 mm, and specific dimensions can be adjusted according to component design and application requirements.

4. Can Nitinol sheet be customized?

Yes. Nitinol sheet can be customized in thickness, width, length, material condition, and surface finish. Customers can provide drawings or technical requirements so that a suitable material solution can be confirmed.

5. What surface finishes are available for Nitinol sheet?

Different surface conditions are available, including:

• Cold-rolled finish
• Pickled finish
• Polished finish

The specific surface condition can be selected based on downstream processing and final application requirements.

6. What quality documents and inspection support are available?

Relevant quality documentation and inspection support can be provided according to project requirements, including:

Material information

• Chemical composition test report
• Mechanical property test report
• Dimensional inspection report
• Batch traceability records

Request a Custom Nitinol Sheet Solution

Chalco can provide custom Nitinol sheet solutions for medical device and precision engineering projects. Support covers material condition confirmation, specification matching, sample development, and volume supply to help customers select suitable NiTi materials.

Please provide the following information:

• Material requirements
• Thickness and dimensional requirements
• Material condition (superelastic/shape memory)
• Surface finish requirements
• Application
• Purchase quantity
• Drawings or technical specifications, if available
