MMO Flexible Anode for Cathodic Protection
Updated : Jul. 22, 2026MMO flexible anode, also known as MMO linear anode, is a mixed metal oxide (MMO) auxiliary anode used in impressed current cathodic protection (ICCP) systems for buried metallic structures such as pipelines, tank bottoms, and installations in high-resistivity soils.
Chalco offers two technical approaches and five configurations, supporting on-site cutting. Typical output current ranges from 300 to 1000 mA/m, with a design life of 40 years or longer depending on current loading and project conditions.
Its continuous linear layout enables more uniform distribution of protective current and reduces interference with adjacent metallic structures.
MMO flexible anode types and model selection
Chalco provides two primary technical approaches and five MMO flexible anode configurations, covering a wide range of applications-from high-output pipeline cathodic protection to low-current, highly uniform drainage systems.
The standard assembly typically has an overall outer diameter of approximately Φ38 mm (1.5 in). The anode core, cable specification, output rating, and connection method can be customized to match specific engineering requirements.
| Model | Core Structure | Output Current (mA/m) | Design Life | Optimal Application |
| ELTA-15 | Φ1.5 mm MMO/Ti wire + pre-filled calcined coke backfill | 300–1000 mA/m | ≥40 years (subject to specific design) | Standard buried pipelines and aboveground storage tank (AST) bottoms requiring moderate protection current. |
| ELTA-30 | Φ3.0 mm MMO/Ti wire + pre-filled calcined coke backfill | 300–1000 mA/m | ≥40 years (subject to specific design) | Large aboveground storage tank (AST) bottom plates requiring higher current density margin and extended design life. |
| Conductive Polymer Anode | Copper conductor core jacketed with conductive polymer sheath |
52–82 mA/m (in soil) 10 mA/m (submerged) |
≥25 years (subject to specific design) | Long-distance uniform drainage, submerged or immersed environments, and AC interference mitigation. |
| Piggyback Anode | MMO/Ti wire factory-preconnected to parallel copper feeder cable | 300–1000 mA/m | ≥40 years (subject to specific design) | Long-distance pipeline projects aiming to minimize field cable splicing and reduce installation labor. |
| Custom/Non-Standard Configuration | Customizable Ti wire diameter, cable type (XLPE/PVC, HMWPE, Kynar), and outer sheath | Customized per technical requirements | Confirmed per project MTC | Extreme-environment ICCP projects requiring special physical dimensions or non-standard electrical parameters. |
Selecting the appropriate MMO flexible anode type depends on soil resistivity, required protection current density, and system design life.

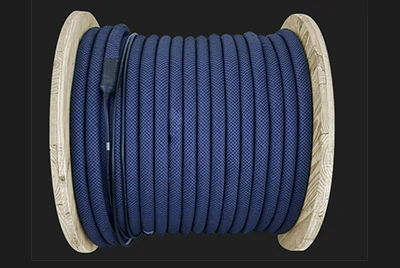

ELTA-15
A cost-effective mainstream solution for standard pipelines and AST bottoms, delivering stable polarization performance with a design life exceeding 40 years.

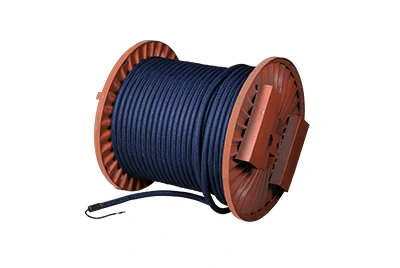

ELTA-30
Designed specifically for large aboveground storage tank (AST) bottom plates, the reinforced Φ3.0 mm anode core provides greater current discharge capacity and extended service life margin.
Conductive Polymer Anode
Ideal for dense pipeline networks, submerged installations, and AC interference mitigation-effectively reducing the risk of hydrogen embrittlement and coating disbondment caused by over-polarization.

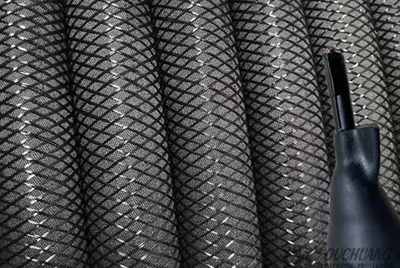

Piggyback Anode
Factory-preconnected anode wire and feeder cable with 100% helium leak testing-ready for direct reel-out installation on site, significantly reducing field splicing and wiring procedures.
Custom/Non-Standard Configuration
Flexible customization per your project's technical specifications (MTC), including Kynar dual-insulated cables, specific node spacing, or tailored alloy ratios.
For other specialized cathodic protection needs, Chalco also supplies MMO titanium ribbon anodes for aboveground storage tank bottoms and MMO deep well anodes for deep groundbed applications, ensuring comprehensive asset corrosion protection coverage.
You may request a complete datasheet for your selected model or submit specific project specifications to receive a customized RFQ. Final parameters will be confirmed based on the project's technical specification and Mill Test Certificate (MTC).
MMO flexible anode technical specifications
To ensure the impressed current cathodic protection (ICCP) system meets its designed operating parameters, design and procurement engineers must rigorously verify the mechanical, chemical, and electrochemical specifications of the selected materials.
Below are the complete technical specifications for Chalco's flexible anode series, presented in both metric and imperial units and aligned with recognized international standards.
MMO/Ti wire-type flexible anode (ELTA-15 / ELTA-30)
This configuration uses dimensionally stable commercially pure titanium wire conforming to ASTM B348 Grade 1 or 2 as the primary anode core, uniformly coated with a highly electrocatalytic iridium-tantalum (Ir-Ta) mixed metal oxide catalyst.
A critical engineering detail of this design is that the contact resistance at the connection point between the MMO/Ti wire and the internal cable is maintained at an extremely low level of ≤0.0009 Ω. Minimizing this contact resistance is essential to reduce longitudinal voltage drop over long-distance installations, optimizing rectifier sizing and lowering long-term operational energy costs.
Additionally, the ELTA-30 features a thicker Φ3.0 mm titanium core, offering enhanced mechanical strength and higher current-carrying margin-ideal for large aboveground storage tank (AST) bottom foundations where post-installation excavation is not feasible.
Technical Specification Table: ELTA-15 and ELTA-30
| Technical Parameter | ELTA-15 Specification | ELTA-30 Specification | Engineering Relevance and Applicable Standards |
| Overall Anode Outer Diameter | Φ38 mm (1.5 in) | Φ38 mm (1.5 in) | Determines effective anode-soil contact area |
| MMO/Ti Anode Core Diameter | Φ1.5 mm | Φ3.0 mm | Titanium wire substrate complies with ASTM B348 Gr 1/2 |
| Coating Composition | Iridium-tantalum oxide (Ir-Ta) | Iridium-tantalum oxide (Ir-Ta) | Noble metal mixed oxide catalyst layer |
| Typical Rated Discharge Current | 300–1000 mA/m | 300–1000 mA/m | Determines current output capacity per unit length in soil |
| Design Service Life | ≥40 years | ≥40 years | Dependent on current loading; compliant with project design specifications |
| Cable Specification and Insulation | 1×10 mm² XLPE/PVC | 1×10 mm² XLPE/PVC | HMWPE or Kynar insulation available upon request |
| Pre-filled Coke Purity | Carbon content ≥99.5% | Carbon content ≥99.5% | Pre-filled with high-performance calcined petroleum coke powder |
| Connection Contact Resistance | ≤0.0009 Ω | ≤0.0009 Ω | Prevents localized heating at joints and minimizes longitudinal voltage attenuation |
| Finished Anode Weight per Meter | 1.5 kg/m (1.0 lb/ft) | 1.5 kg/m (1.0 lb/ft) | Relevant for shipping weight calculation and installation tensile load |
| Standard Reel Length | 500 m / 1000 m | 500 m / 1000 m | Can be freely cut to required on-site lengths |
Reliable node connections are critical to the long-term performance of linear anode systems.
In Chalco's MMO/Ti wire flexible anodes, the titanium wire is securely crimped to the copper core cable at 5 m (16.4 ft) intervals-a spacing that can be customized according to project cathodic protection design requirements.
To prevent moisture ingress and severe anodic corrosion of the copper conductor, each crimped joint is hermetically sealed using a dedicated epoxy-based splice kit.
All joints undergo rigorous factory Helium Leak Testing" to ensure long-term underground sealing reliability.

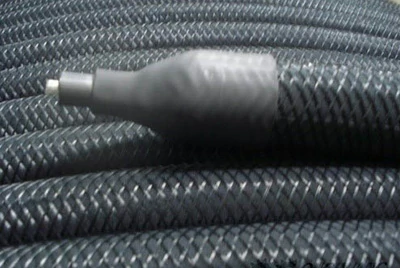

Conductive polymer flexible anode
For projects requiring low-current, continuous micro-drainage-where over-polarization could cause hydrogen-induced coating disbondment or rapid blistering-the conductive polymer anode is an ideal choice.
This cable-type anode uses a stranded copper core as a low-resistance longitudinal conductor, jacketed with a conductive modified polymer layer that serves as the electrochemical discharge surface.
A key mechanical specification for this model is its minimum bend radius of 500 mm (20 in). During installation in complex, confined pipeline networks-such as those in petrochemical plants or gas distribution stations-this bending limit must be strictly observed to prevent micro-cracking or structural failure of the conductive polymer sheath at bends.
Technical Specification Table: Conductive Polymer Flexible Anode
| Technical Parameter | Specification Value | Test Standard and Engineering Relevance |
| Operating Current in Soil | 52 mA/m (without coke bed) 82 mA/m (with coke bed) | Rated current discharge capacity in soil environments |
| Operating Current in Water | 10 mA/m (submerged / immersed environment) | For underwater or wet applications; withstands maximum water pressure ≤7 MPa (1015 psi) |
| Typical Coating Loading | ≥6 g/m² | Controls current to release slowly and uniformly along the polymer cable surface |
| Maximum operating current density | <100 A/m² | Maximum safe operating limit when carbonaceous backfill is used in soil environments |
| Expected service life | 25 years | Depends on actual drainage current density and on-site medium conditions |
| Anode resistivity | ≤0.007 Ω·cm | Evaluates the bulk conductivity of the conductive polymer matrix |
| Polymer consumption rate | 0.2 to 0.9 kg/A·yr | Electrochemical consumption rate of the polymeric active material under typical impressed current conditions |
| Inter-cable contact resistance | ≤0.9 mΩ (≤0.0009 Ω) | Contact resistance between the copper core and the conductive polymer layer |
| Weight loss in chemical media | Weight loss <1% | Tested per ASTM D-543 standard (6-month immersion in chemical media) |
| Minimum installation/storage temperature | −18°C (0°F) | Hard lower limit restricting handling, storage, and installation during cold seasons |
| Finished product weight per meter | 1.5 kg/m (1.0 lb/ft) | Overall weight per meter after pre-filling internal components |
| Standard factory reel length | 500 m / 1000 m | Supplied on wooden or steel reels; can be freely cut on site |
Backfill and braided sleeve
The pre-filled calcined petroleum coke powder and porous synthetic fiber sleeve are essential for ensuring the service life of MMO/Ti wire-type and conductive polymer anodes. The backfill significantly reduces the anode's grounding resistance, while the fiber sleeve must withstand substantial mechanical abrasion during on-site dragging and direct burial.
Technical specifications of calcined petroleum coke backfill (typical parameters / customizable upon request)
The coke backfill used in pre-packaged assemblies is rigorously screened to meet high-conductivity and low-consumption design requirements:
- Fixed carbon content (ASTM D3172): minimum 98.5% (Note: Chalco ELTA series flagship configuration uses premium-grade coke with carbon content ≥99.5%)
- Ash content (ASTM D3172): maximum 1.0%
- Sulfur content: maximum 0.5%
- Volatile matter (heated to 950°C): maximum 0.5%
- Moisture content: maximum 0.5%

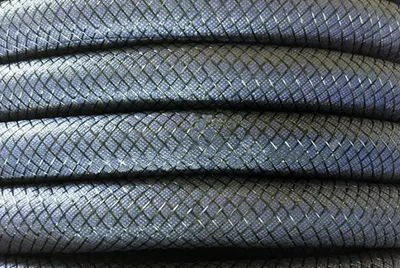

Mechanical properties of acid/alkali-resistant braided jacket/sleeve (typical values)
The flexible fabric sheath enclosing the coke and anode core is stitched with multi-strand synthetic fibers using a double-lock anti-unraveling stitch pattern to prevent seam rupture during on-site tensioning and backfilling:
- Burst strength (ISO 3303): minimum 500 N (ensures the sleeve does not burst or leak powder under large-scale backfilling and compaction loads)
- Abrasion resistance (ASTM D-4157): minimum 100 cycles to failure (ensures the outer jacket remains intact when dragged and laid in rough trenches)
- Chemical resistance (6-month continuous immersion): compliant (maintains structural integrity in acidic, high-chloride underground electrolytes)
- UV resistance (ASTM G-53): compliant (resists sun exposure during temporary outdoor storage; tensile strength loss ≤55% after cyclic aging)
- Minimum bend radius: 500 mm (20 in)
Comparison of MMO/Ti wire-type and conductive polymer-type anodes
To meet diverse project specifications, Chalco offers two distinct technical approaches:
MMO/Ti wire-type flexible anode
Uses high-tensile-strength titanium wire conforming to ASTM B348 Grade 1/2 as the core, coated with an Ir-Ta mixed metal oxide catalyst.
Designed specifically for high-current output requirements (300 to 1000 mA/m), this configuration delivers exceptional longevity and stability in corrosive media, making it the industry-standard choice for cathodic protection of aboveground storage tank (AST) bottoms and long-distance pipelines.
Conductive polymer-type flexible anode
Features a conductive-modified polymer layer extruded over a multi-strand copper conductor. This polymer layer itself acts as the active current-dispersing medium, releasing protection current in an extremely uniform, low-density slow-drip" manner (typical soil operating current: 52 to 82 mA/m), effectively preventing over-polarization issues such as hydrogen embrittlement and coating disbondment.
Ideal for densely packed pipeline networks, submerged/aquatic environments, and AC interference mitigation.
Applications of MMO flexible anodes
The unique geometry of MMO flexible anodes enables solutions to complex cathodic protection challenges that traditional deep-well or distributed point anodes struggle to address.
By installing the active mixed metal oxide (MMO) anode core parallel to the target structure, engineers can effectively eliminate shielding effects, reduce stray current risks, and achieve stable polarization potentials.

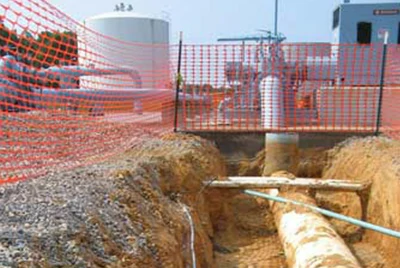

Buried pipeline linear anode
Provides continuous, uniform longitudinal protection potential distribution along long-distance oil, gas, and water pipelines.
This effectively avoids the over-protection zone" near traditional point anodes (which can cause hydrogen-induced coating disbondment) and the under-protection zone" at distant locations (which accelerates corrosion).
Aging/poor-coating legacy pipelines
Specifically designed for legacy pipeline networks with extensive coating degradation, it compensates potential and current without requiring significant increases in rectifier output voltage (high voltage can cause secondary disbondment of intact nearby coatings), enabling precise and stable polarization.

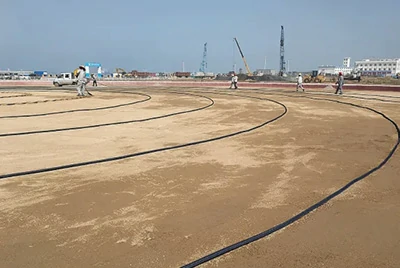

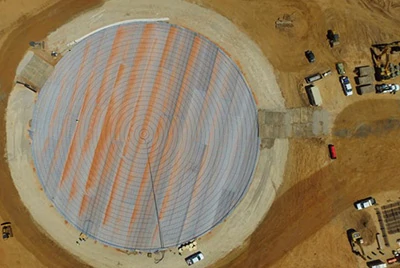

Flexible anode for AST bottom plate cathodic protection
Dedicated to external cathodic protection of aboveground steel storage tank (AST) bottom plates. Unlike point anodes placed around the tank perimeter, flexible anodes are installed directly beneath the tank bottom plate in the sand bedding layer in a grid or concentric ring pattern, ensuring uniform lateral current coverage across both central and edge areas of the plate.
For AST foundations with shallow sand layers, you may also consider our MMO titanium ribbon anode for tank bottoms as an alternative geometric configuration.
Dense pipeline networks in high-resistivity environments
In confined underground utility corridors, flexible anodes effectively prevent electromagnetic shielding caused by adjacent metallic structures intercepting current from traditional anodes.

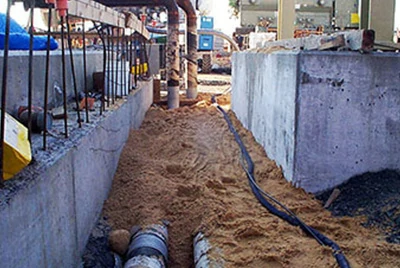

Regional cathodic protection for petrochemical stations
Highly suitable for regional cathodic protection in petrochemical facilities such as compressor stations, power plants, and chemical plants with complex underground utility networks.
When space is extremely limited and deep-well groundbeds are impractical, flexible anodes are buried parallel to pipelines, providing close-proximity, directional protection.
For applications requiring vertical deep discharge, engineers may also evaluate our MMO deep well anode to identify the optimal system solution.

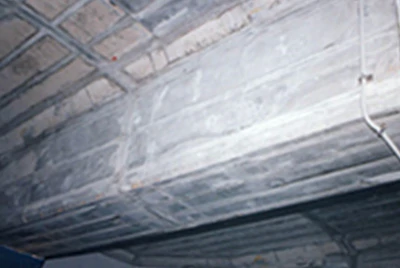

Reinforced concrete structures and marine facilities
A typical application in specialized scenarios, where the excellent flexibility of flexible anodes allows them to conform to complex irregular concrete foundations, curved rebar mats, or marine pile caps, helping suppress cracking and spalling of concrete structures in corrosive environments.
Whether addressing complex petrochemical stations, aging pipelines with degraded coatings, or high-resistivity desert soils, Chalco MMO flexible anodes provide an engineering-compliant corrosion barrier for your assets.

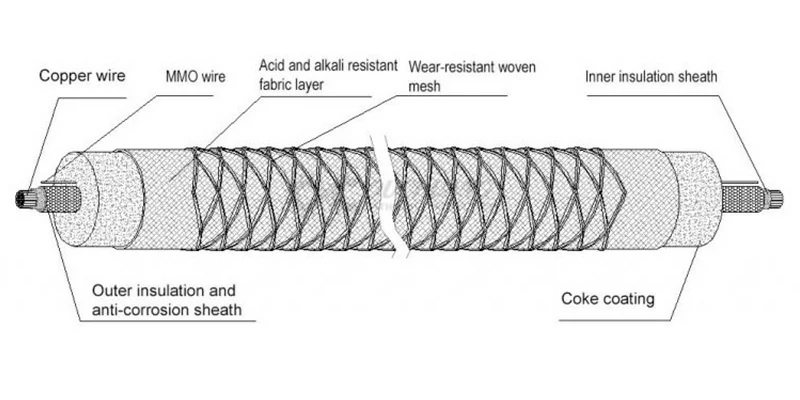

Working principle of MMO flexible anodes
The core working principle of MMO flexible anodes lies in separating longitudinal current transmission" from electrochemical lateral current discharge." Under standard operation, protection current is transmitted over long distances via an internal, highly conductive insulated copper cable. At predetermined intervals, this copper conductor is electrically connected and sealed to a continuous titanium wire coated with an iridium-tantalum (Ir-Ta) mixed metal oxide catalyst.
Critically, electrochemical reactions occur exclusively on the highly chemically stable titanium substrate-never on the copper core. The copper cable is fully sealed to prevent fatal anodic self-dissolution upon contact with electrolytes.
Protection current is released from the MMO/Ti wire into pre-filled, highly conductive calcined petroleum coke powder. This coke matrix acts as the primary electronic conductor, smoothly and uniformly dispersing current through a porous nonwoven fabric sleeve and braided protective layer into the surrounding soil or electrolyte, thereby creating an exceptionally uniform protective electric field around the structure.
Design and installation considerations
Integrating linear anodes into an impressed current cathodic protection (ICCP) system requires precise sizing and standardized installation practices.
Chalco provides comprehensive engineering guidelines to help design institutes and field contractors optimize current distribution and reduce on-site construction time.
Protection current estimation and feed point layout
To select the appropriate MMO flexible anode for a specific project, the engineering team must determine the total protection current requirement and plan the distribution network. Typical specification estimation steps are as follows:
Determine the target protection current density: The required current density is determined based on the type of coating and environmental conditions (typically 1–5 mA/m² for high-integrity coatings, while severely aged structures may require over 30 mA/m²).
Calculate the total required current: Multiply the total surface area of the protected steel structure by the target protection current density to determine the total current demand.
Evaluate longitudinal voltage drop: Analyze the longitudinal resistance of the titanium wire and feeder cables to ensure the voltage drop remains within standard limits over long-distance installations. High contact resistance can severely limit the effective loop length.
Determine feeder point locations: Based on the calculated loop length, establish the spacing between each electrical feed point to maintain uniform current distribution across the entire structure.
Since the total operational length of the anode is limited by voltage attenuation, it is critical to select anodes with extremely low contact resistance (e.g., Chalco's specification of ≤0.0009 Ω).
Lower contact resistance allows for longer loop lengths between each power feed point, reducing the number of required DC cables and power connections, thereby lowering total project costs.
The final system design should target the standard −850 mV vs CSE polarization criterion (in accordance with NACE/AMPP SP0169 and ISO 15589-1).
To accurately monitor long-term changes in these potentials, engineers should integrate the system with reliable reference electrodes installed at key diagnostic points in the network.
On-Site cutting, splicing, and backfilling
Once dimensions and layout are finalized, understanding how to install flexible anodes efficiently on-site is key to reducing labor costs and avoiding project delays.

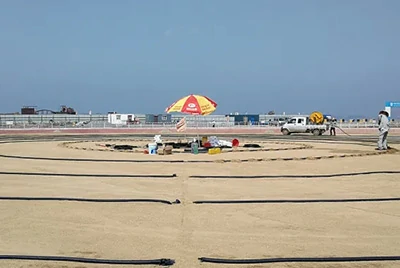

The installation process is designed for rapid field deployment:
Direct trench laying: Unreel the pre-packaged anode assembly directly from the factory-supplied reel and lay it into a trench parallel to the pipeline or beneath tank bottoms, maintaining a minimum bend radius of 500 mm (20 in) at sharp curves.
On-site length cutting: Make clean cuts at any point along the assembly to match the exact length of the protected section without damaging internal core components.
Splicing and sealing: Connect segmented anodes to the main feeder cable using standard crimp connectors, then seal the joints in dedicated epoxy resin splice kits (joints are nominally spaced at 5 m (16.4 ft) intervals or adjusted per specifications).
Backfilling and compaction: Cover the anode with native soil or sand; the pre-packaged coke backfill ensures a ready-to-use, highly conductive environment and low grounding resistance.
Note that these design and installation parameters represent typical guidelines; the final design must always comply with project-specific requirements and local engineering standards.
Standards and compliance
To ensure our materials seamlessly integrate into high-standard international energy and infrastructure projects, Chalco operates strictly within established engineering frameworks.
Our MMO flexible anode assemblies are fully supported upon specification to ensure system compliance with globally recognized cathodic protection and material standards.
- AMPP/NACE SP0169
- AMPP/NACE SP0193
- AMPP/NACE SP0285
- ISO 15589-1
- ASTM B348
- ASTM B265 / DIN 3.7035
Our system design complies with the −850 mV vs CSE (copper/copper sulfate reference electrode) polarization criterion specified in NACE SP0169 and ISO 15589-1.
To guarantee consistency between batches, all our production partners operate under verified quality management systems.
Core components are manufactured under ISO 9001 quality management systems and can undergo RoHS compliance testing upon specific procurement request to verify environmental conformity.
Each batch is accompanied by a Material Test Certificate (MTC) compliant with EN 10204 3.1, ensuring full traceability of chemical composition and melt number.
Quality, traceability, and custom manufacturing
As a reliable supplier of cathodic protection anodes, Chalco maintains stringent manufacturing standards.
The active mixed metal oxide (MMO) coating is applied through a multi-pass thermal decomposition and high-temperature sintering process to ensure excellent adhesion between the catalyst and titanium substrate.
Additionally, all parallel copper-core feeder cable crimp joints undergo factory helium leak testing to confirm watertight integrity during long-term buried operation.
Customization and OEM/ODM services
Every infrastructure project faces unique soil conditions and structural constraints.
As an experienced MMO flexible anode supplier, we offer flexible OEM/ODM custom manufacturing.
Customers can specify different feeder cable insulation types (e.g., Kynar, HMWPE), customize titanium wire anode core diameter, define rated discharge current output, and adjust electrical connection node spacing to design custom flexible anodes that meet project-specific requirements.
Packaging and shipping

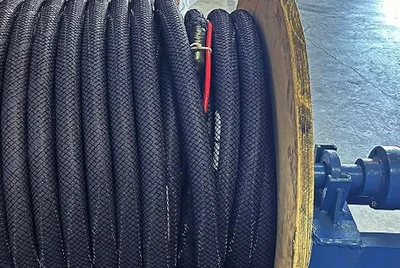

Flexible anodes are shipped wound on robust wooden or steel reels, designed to allow direct unreeling from the spool into pre-excavated trenches at the construction site.
The table below lists typical packaging and container loading parameters; custom packaging is available upon project request.
| Anode reel length | Reel physical dimensions (diameter × width) | Approximate gross weight per reel (GW) | Standard container loading capacity (20 ft GP) |
| 500 ft (152 m) | Φ914 × 812 mm (Φ36" × 32") | 215 kg (473 lbs) | 24 reels |
| 1000 ft (305 m) | Φ1067 × 1016 mm (Φ42" × 40") | 430 kg (947 lbs) | Loaded per project specifications and calculations |
| 1500 ft (457 m) | Φ1168 × 1041 mm (Φ46" × 41") | 645 kg (1421 lbs) | Loaded per project specifications and calculations |
To streamline international customs clearance and buyer receiving processes, each shipping container includes a complete set of transport and inspection documents:
- Proforma Invoice & Commercial Invoice
- Detailed Packing List
- Factory test reports (including chemical composition analysis, electrochemical performance tests, and certificates of conformity)
- Certificate of Origin (available upon request)
Please note that specific pricing, standard lead times, and minimum order quantities (MOQ) will be confirmed per order, depending on anode customization parameters and international shipping routes.
Frequently asked questions (FAQ)
What is an MMO flexible anode?
An MMO flexible anode is a continuous, cable-like auxiliary anode designed to provide uniform current distribution for impressed current cathodic protection (ICCP) systems. It uses an internal copper conductor connected to an MMO-coated titanium core embedded in pre-filled coke backfill.
What is the current output of an MMO flexible anode?
The typical current output range of an MMO flexible anode is 300 to 1000 mA/m, depending on anode core diameter and project design. Conductive polymer anodes typically deliver 52 to 82 mA/m in soil.
What are the two types of flexible anode?
The two main types of flexible anodes are mixed metal oxide (MMO/Ti) wire-type anodes and conductive polymer cable-type anodes. MMO/Ti wire-type anodes are suitable for high-current applications such as tank bottoms, while conductive polymer types are better suited for low-current-density distribution scenarios.
How long does an MMO flexible anode last?
Depending on current load and environmental conditions, MMO flexible anodes are designed for service lives of 40 years or more. Conductive polymer alternatives typically have an expected lifespan of 25 years.
Can an MMO flexible anode be cut on site?
Yes, MMO flexible anodes can be easily cut to any required length directly on-site during installation. Splicing is achieved using crimp connectors sealed with epoxy resin splice kits. Joints are nominally spaced at 5 meters (16.4 feet) but remain fully adjustable.
Is an MMO flexible anode the same as a water heater anode rod?
No, an MMO flexible anode is an industrial-grade impressed current cathodic protection (ICCP) auxiliary anode and is entirely different from residential water heater anode rods.
Water heaters use small, rigid sacrificial magnesium or aluminum rods, whereas MMO flexible anodes are continuous, cable-like structures installed parallel to pipelines or storage tanks.
Request datasheets, samples, or quotes
Chalco provides customized engineering support and material procurement assistance for all linear anode configurations. Depending on your current project stage, you can proceed via one of the following paths:
Request a detailed datasheet: To fully verify mechanical and electrochemical specifications, you may request a complete product datasheet for any standard model or custom configuration.
Submit a project RFQ or request a sample: To evaluate physical material compatibility or obtain cost analysis for a specific project, you may submit a Request for Quotation (RFQ) or request a physical material sample.
Please provide your pipe/tank diameter, soil resistivity, installation length, and required protection current. Our technical team will use this information to deliver precise selection recommendations and an optimized project quote. Custom specifications, project-specific lead times, and final purchase pricing will be confirmed per individual order.
