Titanium Anodes for Electrolytic Metal Recovery

Electrolytic metal recovery deposits and recovers metal ions such as copper, nickel, cobalt, zinc, gold, and silver from solution. It is commonly used in electrowinning, electroplating-waste treatment, copper recovery from PCB solutions, non-ferrous metal extraction, and precious-metal recovery projects.

Based on the electrolyte composition, target metal, current density, and cell design, we can supply MMO, Ir-Ta, PbO₂, and platinum-coated titanium anodes, as well as titanium anode plates, mesh, baskets, electrode assemblies, and electrolyzer cell solutions.

Titanium Anode Applications in Electrolytic Metal Recovery

We can supply coated titanium anodes, electrode assemblies, or electrolyzer cell solutions for the following projects, based on the target metal, electrolyte composition, current density, and cell design.

Titanium Anodes and Equipment for Electrolytic Metal Recovery

For electrolytic metal recovery, electrowinning, and metal-containing waste-treatment projects, we can supply coated titanium anodes, titanium anode products, electrode assemblies, and electrolyzer cell solutions. These products can be used in new equipment or for replacement and retrofit of existing electrolyzer cells, cyclone electrolytic cells, and electrode assemblies.

Matching Titanium Anode Coatings to Operating Conditions

Electrolytes vary considerably among metal-recovery projects. The titanium anode coating should be selected according to electrolyte composition, acidity or alkalinity, chloride content, current density, temperature, and expected service life.

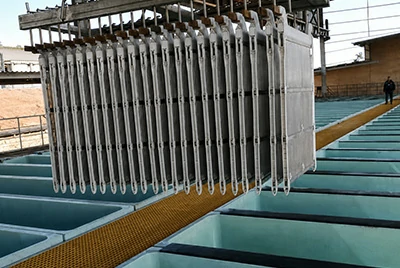

Ir-Ta MMO Coating: Acidic electrolytes, oxygen-evolution environments, electrodeposition, and non-ferrous metal extraction; can be evaluated for selected copper, nickel, cobalt, and other metal-recovery projects.

PbO₂ Coating: Strongly oxidizing environments, specialized metal recovery, and selected metallurgical electrolysis processes; suitability should be evaluated based on acidity, chloride content, current density, and the operating environment.

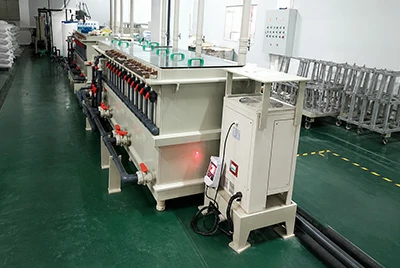

Platinum-Coated Titanium Anodes: Precious-metal recovery, specialized electroplating, and small electrolysis systems with demanding requirements; suitable for projects with higher requirements for stability and electrolyte cleanliness.

Ru-Ir MMO Coating: Chlorine-evolution environments, brine, high-chloride systems, and water disinfection; not a default coating for metal recovery; chloride-containing systems require separate evaluation.

Titanium Anode Products

Titanium anode plates, mesh, baskets, tubes, rods, and custom coated titanium anodes are available.

Anode dimensions, thickness, hole positions, coated areas, and electrical connections can be customized to the cell dimensions, electrode spacing, current requirements, installation method, and connection design.

Titanium Electrode Assemblies

Anode assemblies, cathode assemblies, electrode frames, conductive rods, hangers, busbar connectors, custom electrode-spacing structures, and replacement solutions for existing electrode assemblies are available.

Suitable for projects requiring a complete electrode set, integration into new equipment, or modification of electrodes in an existing electrolyzer cell.

Electrolyzer Cells and Metal-Recovery Equipment

Depending on the project, plate-type electrolyzer cells, cyclone electrolytic cells, metal-recovery electrolysis equipment, electrodes for electrowinning cells, and matching power, circulation, and control systems are available.

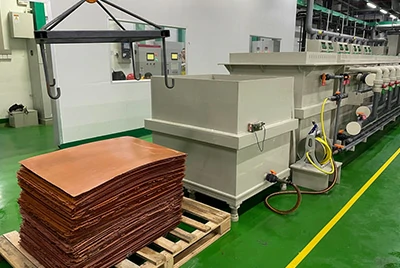

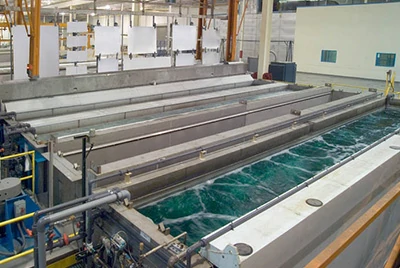

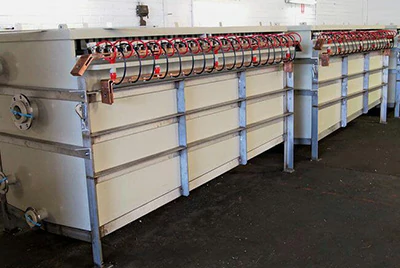

Suitable for PCB copper-containing waste solutions, electroplating waste, industrial metal-containing waste liquids, small metal-recovery systems, and pilot electrolytic recovery projects.

Custom Titanium Anode Solutions Based on Project Parameters

Anodes for electrolytic metal-recovery projects generally cannot be selected by standard model alone. Titanium anode coatings, anode structures, electrode assemblies, and electrolyzer cell solutions can be customized for an existing cell, a new equipment design, or replacement of an existing anode.

Customization Options

• Titanium anode coating type and coated area
• Anode plate, mesh, basket, and tubular anode structures
• Anode dimensions, thickness, hole positions, and mesh specifications
• Hanger, conductive rod, bolted, or busbar connections
• Anode and cathode arrangement
• Electrode spacing and assembly design
• Solutions for plate-type or cyclone electrolytic cells

Recommended Project Parameters

With this information, we can recommend a suitable titanium anode coating, product configuration, electrode design, and cell arrangement for the actual operating conditions. This supports subsequent confirmation of cost, lead time, and expected service life.

Coated Titanium Anodes vs. Lead and Graphite Anodes

Lead and graphite anodes are still used in some conventional electrowinning, electroplating, and electrolytic metal-recovery systems. In certain projects, concerns about anode dissolution, particle shedding, maintenance frequency, electrolyte contamination, and current-density stability may lead users to evaluate coated titanium anodes for replacement or upgrade.

For systems currently using lead or graphite anodes, coated titanium anodes may be an alternative in selected projects. Suitability for replacement must be determined from electrolyte composition, current density, temperature, original anode dimensions, cell design, and connection method.

Choose Chalcotitanium as Your Titanium Anode Supplier

We can recommend a suitable titanium anode coating, product configuration, and electrode assembly based on electrolyte composition, target metal, current density, and cell design, rather than supplying only standard models.

• Coating selection: MMO, Ir-Ta, PbO₂, platinum, and other coating options can be evaluated
• Product range: Anode plates, mesh, baskets, tubular anodes, and electrode assemblies are available
• Project support: Replacement of existing anodes, integration into new equipment, and cell retrofits
• Operating-condition-based selection: Solutions are determined from the electrolyte, electrode spacing, current density, and installation method
• Flexible supply: Coatings, individual anodes, electrode assemblies, or matching metal-recovery equipment are available

FAQ

Can Titanium Anodes Be Customized for an Existing Electrolyzer Cell?

Yes. Anode dimensions, coated areas, hanger structures, and electrode assemblies can be customized from cell dimensions, photographs of the existing anode, drawings, anode-cathode spacing, and connection methods.

Which Titanium Anode Coating Is Suitable for Electrolytic Metal Recovery?

Selection depends on electrolyte composition, pH, chloride content, current density, temperature, and the target metal. Ir-Ta MMO, PbO₂, platinum, and other coatings can be evaluated for the operating conditions.

Can Titanium Anodes Replace Lead or Graphite Anodes?

Coated titanium anodes may be an alternative in selected electrowinning, electroplating, and metal-recovery systems. Suitability depends on the original electrolyte, anode structure, current density, and cell connection method.

Do You Supply Only Anodes, or Also Electrode Assemblies and Equipment?

We can supply coated titanium anodes, titanium anode plates, mesh, baskets, and electrode assemblies. Electrolyzer cells or matching metal-recovery equipment are also available depending on the project.

What Information Is Required for a Quotation?

Please provide the target metal, electrolyte composition, metal-ion concentration, pH, temperature, current density, cell dimensions, anode dimensions, connection method, existing anode photographs or drawings, and required scope of supply.

Request a Titanium Anode Solution for Electrolytic Metal Recovery

If you are developing or retrofitting an electrolytic metal-recovery, electrowinning, copper-recovery, electroplating-waste, or precious-metal recovery project, send us the electrolyte composition, target metal, current density, cell design, existing anode drawings, or equipment requirements.

Based on the actual operating conditions, we can recommend a suitable titanium anode coating, anode structure, electrode assembly, or electrolyzer cell solution.

Submit Project Parameters to Request a Titanium Anode Solution
