Titanium Anodes for Energy and Water Electrolysis

Titanium anodes for energy and water electrolysis use titanium plate, mesh, tube, or rod substrates with functional coatings such as MMO, Ru-Ir, Ir-Ta, or Pt. Depending on the electrolytic system, these electrodes can support chlorine evolution, oxygen evolution, hydrogen evolution, or related electrochemical reactions in water electrolysis, hydrogen-rich water equipment, EDI/EDR high-purity water systems, saline water electrolysis, NaClO generators, seawater electrolysis, and other energy-related electrochemical equipment.

Based on the electrolyte composition, pH, conductivity, current density, cell dimensions, electrode spacing, and mounting configuration, Chalco Titanium can supply titanium anode plates, meshes, tubes, rods, and custom electrode assemblies. We can help determine a suitable substrate form, coating system, coated area, connection method, and electrode assembly design for the project conditions, whether for new equipment, laboratory setups, pilot systems, or replacement of existing electrodes.

Applications of Titanium Anodes in Energy and Water Electrolysis

Selecting a titanium anode for energy and water electrolysis equipment involves more than the material name. The anode must match the electrolyte system, target reaction, current density, cell design, and operating environment.

Chalco Titanium can provide titanium anodes and electrode assemblies with Pt, Ru-Ir, Ir-Ta, MMO, and other coatings to suit different equipment requirements, including new equipment, laboratory testing, pilot systems, and replacement of existing electrodes.

Available Titanium Anode Coatings

Based on the electrolyte system, target reaction, current density, and cell design of energy and water electrolysis equipment, Chalco Titanium can provide titanium anodes with Ru-Ir, Ir-Ta, Pt, and MMO coatings.

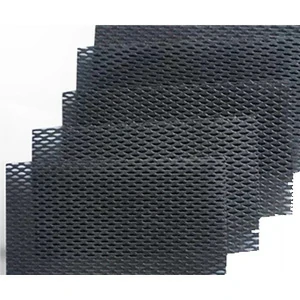

Products can be fabricated as titanium anode plates, meshes, tubes, rods, or custom electrode assemblies for water electrolysis, hydrogen-rich water, EDI/EDR, high-purity water, NaClO generation, brine electrolysis, and seawater electrolysis equipment.

If you already have electrolyte parameters, the target reaction, operating current, or an existing electrode sample, send the operating information to Chalco Titanium. We can help determine a suitable titanium anode coating option.

Custom Titanium Anodes and Electrode Assemblies

Based on the electrolyte system, cell design, electrode spacing, and mounting method of energy and water electrolysis equipment, Chalco Titanium can provide custom products ranging from individual titanium anodes to complete electrode assemblies. These products can be used in water electrolysis, hydrogen-rich water, acidic and alkaline ionized water, small hydrogen-generation units, laboratory electrolysis, and related electrochemical equipment.

Titanium frames or supports are available for all the anodes above. They are used for electrode mounting, electrical connections, and electrode assembly, and are suitable for use with titanium anode plates, titanium anode meshes, or tubular anodes.

Chalco Titanium can also determine the coating type, substrate form, dimensions, structural design, and assembly method according to project requirements, providing products from basic anodes to equipment-ready assemblies.

Platinized Titanium Electrodes for Hydrogen-Rich Water: Suitable for hydrogen-rich water cups and related equipment. The electrodes have a clean surface and stable conductivity and can be customized to the equipment dimensions and assembly design.

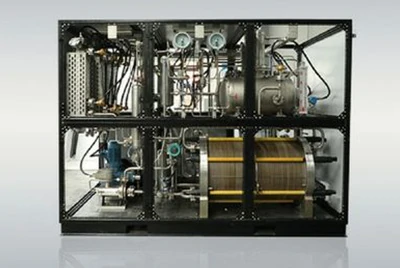

Titanium Electrodes for Hydrogen Generation by Water Electrolysis: Suitable for small hydrogen-generation equipment, laboratory electrolyzers, and test systems. Coating options can be customized according to the electrolyte, operating current, and electrode spacing.

Titanium Electrode Plates for Acidic and Alkaline Ionized Water: Suitable for acidic and alkaline ionized water machines and functional water equipment. Plate dimensions, hole positions, coated areas, and connection methods can be customized.

Titanium Electrode Plates for Electrolyzed Water Produce Washers: Suitable for fruit and vegetable washers and small electrolytic disinfection modules. Electrode plates, electrode meshes, or compact electrode assemblies can be customized.

Matching Electrode Assemblies to the Electrolyzer Design

Titanium anodes in energy and water electrolysis equipment typically operate together with cathodes, electrolyzers, DC power supplies, and control systems; they are not merely individual anode products.

Based on the cell design, electrode arrangement, electrode spacing, and mounting method, Chalco Titanium can customize anode assemblies, electrode sets, or replacements for existing electrodes.

• Customizable features include the anode/cathode arrangement, electrode spacing, coated areas, hole positions, mounting method, electrical connections, tabs/terminals, electrolyzer dimensions, flow direction, and sealing structure.
• If an existing electrode sample, drawing, photograph, or equipment parameters are available, the coating type, dimensional tolerances, connection method, and electrode assembly configuration can be determined from the original design for new equipment or existing-electrode replacement.

Factors Affecting Titanium Anode Service Life and Operating Stability

Titanium anode service life and operating stability depend on factors including electrolyte composition, pH, salinity, chloride ion concentration, conductivity, operating current, current density, temperature, flow rate, and electrode spacing. The suitable coating system, coated area, and electrode design will also vary with the operating conditions.

For equipment intended for long-term operation, electrolyte filtration, rectifier stability, coating protection, and cleaning and maintenance methods also require attention. For strongly alkaline, highly oxidizing, complex-electrolyte, or high-current-density conditions, detailed operating parameters should be provided before the titanium anode option is determined.

Chalco Titanium can help determine a suitable substrate form, coating type, and electrode design based on the actual operating conditions. Specific service life must be evaluated against the operating conditions and project requirements.

Why Choose Chalco Titanium

Chalco Titanium specializes in titanium anodes and electrode assemblies for energy and water electrolysis equipment. Based on the electrolyte system, target reaction, current density, and cell design, we can provide coating options and structural design support matched to different projects.

We support multiple coating systems, including Ru-Ir, Ir-Ta, Pt, and MMO, and can provide custom fabrication of titanium anode plates, titanium anode meshes, tubular anodes, formed anodes, and electrode assemblies.

We also support replacement production based on drawings, samples, or existing electrodes for new equipment, laboratory systems, pilot projects, and upgrades to existing electrolyzers. Dimensions, tolerances, coated areas, connection structures, and packaging can be determined according to project requirements.

FAQ

Q1: Can titanium anodes be used for hydrogen generation by water electrolysis?

Yes. A suitable coating should be selected based on the electrolyte system, equipment design, and operating parameters. Pt-coated titanium electrodes are commonly used in small hydrogen-generation units, hydrogen-rich water equipment, and laboratory equipment. Large systems require confirmation based on the specific operating conditions.

Q2: What is the difference between Ru-Ir and Ir-Ta titanium anodes?

Ru-Ir is more suitable for chloride-containing systems such as brine, seawater, and NaClO generators. Ir-Ta is more suitable for oxygen-evolution conditions such as water electrolysis and highly oxidizing environments.

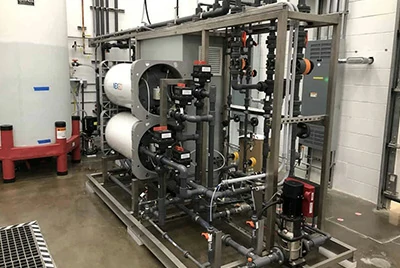

Q3: Can titanium anodes be used in EDI/EDR high-purity water systems?

Yes. Pt- or MMO-coated titanium electrode plates can be selected based on the membrane stack design, conductivity, and operating current.

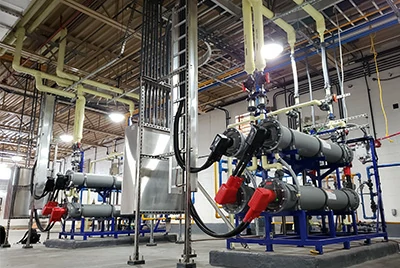

Q4: What type of titanium anode is commonly used in NaClO generators?

Ru-Ir MMO titanium anodes are commonly used for chlorine-evolution conditions. Plates, meshes, or electrode assemblies can be customized based on chlorine output and electrolyzer design.

Q5: Can you customize replacements for existing electrodes?

Yes. Dimensions, hole positions, connection methods, and coating structure can be determined from an existing electrode sample, drawing, or photograph.

Q6: What information is required for a quotation?

We recommend providing the application type, electrolyte composition, pH, conductivity, current, voltage, current density, temperature, flow rate, electrolyzer design, and electrode dimensions or drawings.

Request a Quote and Place an Order

To help match a suitable titanium anode coating and electrode design promptly, we recommend providing project parameters or available information, including the application type, electrolyte composition, pH, conductivity, current, voltage, current density, temperature, flow rate, and electrolyzer dimensions and design.

If you already have electrolyzer drawings, an existing electrode sample, equipment photographs, or technical parameters, you can provide them directly. We can determine the titanium anode dimensions, coating type, connection method, and electrode assembly configuration from the original design.

Chalco Titanium supports custom production ranging from individual titanium anodes to electrode assemblies for new equipment, system upgrades, and existing-electrode replacement projects.
