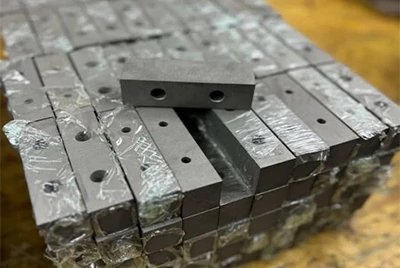

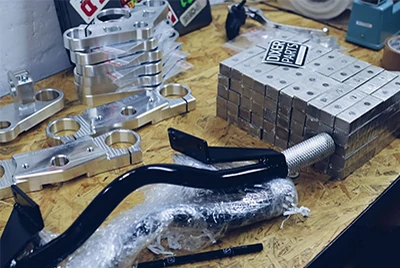

Titanium Scrape Block
Titanium scrape blocks burst into bright white sparks when they touch the ground. At the same time, they protect the motorcycle or car chassis from wear. The sparks create an eye-catching visual effect that stands out in shows and stunt riding.
Why use titanium scrape block
- More durable than steel with a longer service life.
- Produces bright and clean white sparks when scraping asphalt.
- 40% larger surface area for stronger sparks and smoother scraping.
- Quick bolt-on installation, flip and use again to extend life.
- Lightweight design combined with high strength and durability.
Titanium scrape block material and standards
- Made from Ti-6Al-4V Grade 5 titanium, with CP-Ti (Grade 2) available on request.
- EN 10204 3.1 material certificate available, compliant with RoHS and REACH.
CNC precision machining with chamfered and deburred edges, controlled hole spacing and tolerances, powder-coated brackets for durability and clean appearance.
Titanium scrape block product applications

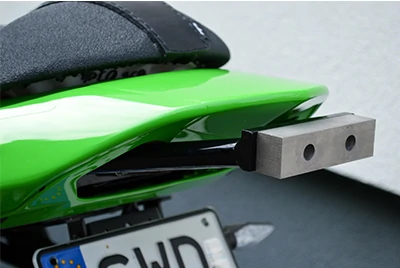

Motorcycle series
Titanium scrape blocks are designed for 12-bar ends, subcages, center mounts, Harley XL fenders, and supermoto dirt bike fenders. They give riders reliable fitment and strong sparks during stunts.
Contact us now
- Clear sizing and bolt spacing for easy fitment without confusion.
- Supplied bolts included for quick installation.
- Blocks can be flipped to extend service life.
- Affordable replacement options reduce long-term costs.
Common sizes of titanium scrape blocks
| Size (in) | Size (mm) | Notes |
|---|---|---|
| 3.65 × 1 × 1 in | 92.7 × 25.4 × 25.4 mm | Standard 12-bar size |
| 3.5 × 1 × 1 in | 88.9 × 25.4 × 25.4 mm | Universal or replacement option |
| 5.5 × 1.5 × 1 in | 139.7 × 38.1 × 25.4 mm | XL size for Harley Dyna and Sportster |
| 2.0 × 1.25 × 1 in | 50.8 × 31.8 × 25.4 mm | Mini compact block |
| 1.75 × 1 × 1 in | 44.5 × 25.4 × 25.4 mm | Supermoto fender kit |

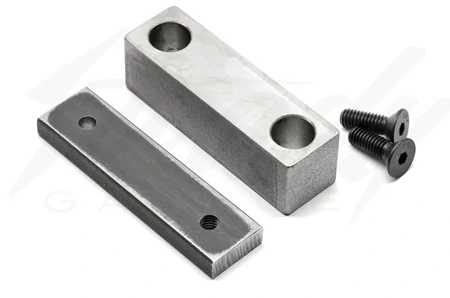

Each titanium scrape block kit includes the block itself, countersunk bolts, and a clear installation guide. Optional upgrades are available, including powder-coated brackets, laser-etched logos, and spare replacement blocks.
Recommended bolt spacing:
- 66 mm / 2.6 in
- 66.7 mm / 2 5/8 in
- 25.4 mm / 1 in (M8 or 5/16-18 bolts)
- 40 mm (EU spec, M6 bolts)
We also supply titanium bolts. If you need different sizes, please click here.

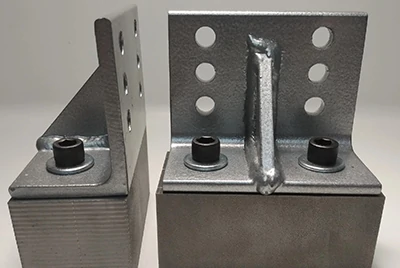

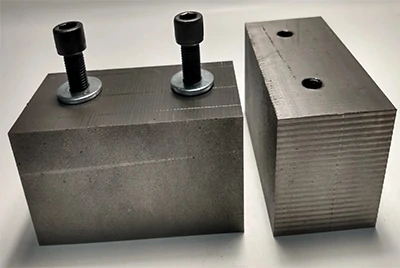

Car and truck series
Titanium scrape blocks are widely used on bagged, lowrider, and show vehicles, mounted at the rear chassis. They deliver sparks on the road while protecting the underbody from wear.
Contact us now
- Large titanium blocks sold in pairs with universal brackets.
- Powder-coated finish for rust resistance and clean appearance.
- Strong sparks and reliable chassis protection.
Common sizes:
| Size (in) | Size (mm) | Notes |
|---|---|---|
| 4 × 2 × 2 | 101.6 × 50.8 × 50.8 | The mainstream lowrider drag block, sold in pairs |
| 1.75 × 1.75 × 5 | 44.5 × 44.5 × 127 | Bar stock for fabricators making custom |

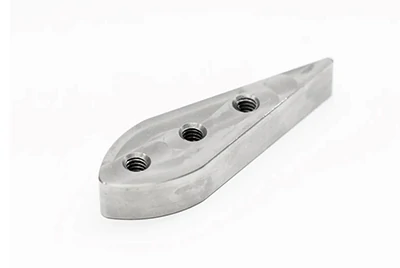

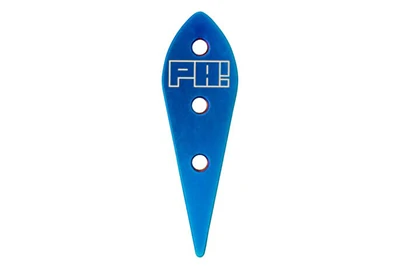

Titanium f1 splitter skid blocks
Our titanium skid blocks—also called "biscuits”—are CNC-machined from Ti-6Al-4V and designed to protect expensive aerodynamic parts during track contact.
Mounted under the front splitter, they prevent wear and damage while maintaining smooth airflow beneath the car.
- More stable hardness under high-temperature friction compared with aluminum or steel.
- Longer service life with fewer replacements.
- Creates eye-catching sparks during track contact.
Safety disclaimer: These products are designed for stunt riding and show vehicles only. Always follow local laws and regulations.
How to choose titanium scrape block size
Step 1 – measure bolt spacing
Most titanium scrape blocks use one of four patterns: 66 mm (2.6 in), 66.7 mm (2 5/8 in), 40 mm, or 1 in.
Simply measure the center-to-center distance on your old plate. If there are no holes, use the drilling template included in the fender kit.
Step 2 – choose bolt size
The most common options are M8 or 5/16-18 bolts.
Step 3 – pick block dimensions
- 3.5–3.65 in – balanced sparks and lightweight.
- 5.5 × 1.5 × 1 in – maximum spark effect.
- 2.0 × 1.25 × 1 in – compact and easy to mount.
- 4 × 2 × 2 in – large sparks with added chassis protection.
Not sure which size to choose? Contact us for quick guidance and a tailored quote.
Titanium scrape block finish and machining
Our scrape blocks come in natural titanium finish, with the option for laser-etched logos. Brackets are available in black powder-coat or custom colors to match your build.
Every edge is CNC chamfered and deburred, making it smooth to the touch and safe to handle. Countersunk or beveled holes ensure tight, flush mounting with the supplied hardware.
Titanium scrape block installation and safety notes
- Easy installation – kit includes bolts, just tighten to the recommended torque.
- Quick start – begin with light scraping to find the right angle before harder use.
- Flip for longer life – rotate the block when one side is worn.
- Safe use – for closed-course stunt riding only, always follow local laws.
- Custom options – brackets and hardware available upon request.
Our service advantages
- Low-cost spare blocks with fast worldwide delivery.
- All SKUs listed in both inch and millimetre sizes.
- One order fits multiple bikes and bracket setups.
- Flip-over design for longer life, optional laser-etched logo.
- Brackets available in black powder-coat or custom colours.
- EN 10204 3.1 certificate available, RoHS and REACH compliant.
- Each block packed with EPE foam and anti-scratch bag, plus user guide and compliance card.
- Global shipping with immediate dispatch and optional door-to-door (DDP) service.
Related products for titanium scrape block
Titanium Bolts
Titanium Washers
Titanium Nuts
Frequently asked questions about titanium scrape block
Q: Where can I buy titanium scrape blocks near me?
A: We offer global warehouses and fast shipping with DDP door-to-door delivery. No matter where you are, you can receive titanium scrape blocks quickly and safely.
Q: How are the sparks created?
A: When titanium scrapes the ground, it shears into hot particles that generate visible white sparks. Compared with steel or aluminum, titanium sparks are brighter, lighter, and longer-lasting.
Q: Will it fit my 12-bar brand?
A: Measure the hole spacing (66 / 66.7 / 40 / 25.4 mm) and check the bolt size (M8 or 5/16-18). Choose the block that matches your setup.
Q: How long does one block last?
A: It depends on riding angle, surface, and style. Most blocks can be flipped once to extend their service life.
Q: Can I order custom spacing or colors?
A: Yes, customization is available with a minimum order quantity (MOQ).
Q: Are titanium scrape blocks for sale online?
A: Yes, all sizes and models are available for purchase directly on our website. You can choose by bolt spacing, block size, or application (motorcycle, lowrider, or race car) and place your order instantly.
