Corrosion-Resistant Lightweight Titanium Washers
Titanium washers for sale – lightweight, corrosion-resistant, and fully customizable to fit your fastening needs.
Made from Grade 2, Grade 5, and Grade 7 titanium, all meet ASME B18.22.1 and IFI standards.
Why choose titanium washers
- Titanium resists seawater and acid, with 42% less weight than stainless steel.
- All washers come with EN 10204 3.1 certification. upgradeable to 3.2 / SGS / TÜV on request.
- M6 & M8 sizes ship within 48 hours. MOQ 1 piece to support urgent needs or prototyping.
- CNC tolerance ±0.02 mm, delivery in 7–10 days.
- Choose from DLC (low friction), PTFE (anti-galling), or 12-color anodizing for easy part ID.
Upload STEP / DWG, get a quote in 24 hours.
Popular titanium washers
| Product type | Application | Available sizes | Material | Key benefits |
|---|---|---|---|---|
| Titanium Flat Washers | Distribute load, protect contact surfaces | M3–M48, thickness 0.5–6 mm | Grade 2 / Grade 5 | M6/M8 in stock, no MOQ required |
| Titanium Fender Washers | Reinforce soft materials, increase bearing area | M4–M20, thickness 1–3 mm | Grade 2 | Optional anodized colors |
| Lock Washers | Anti-loosening, resist vibration | M4–M20, thickness 1.2–3 mm | Grade 5 | ISO 2320 tested, ≥80% preload after 30 cycles |
| Belleville (Spring) Washers | Maintain preload, absorb shock | M4–M20, thickness 0.4–3 mm | Grade 5 | ISO 10289 cyclic corrosion test certified |

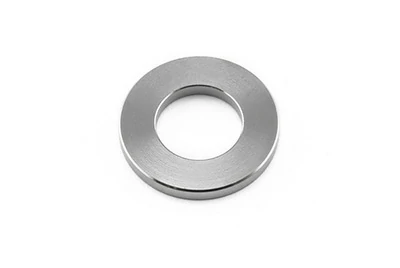

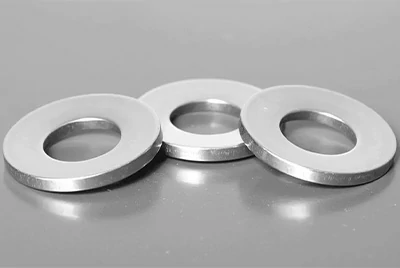

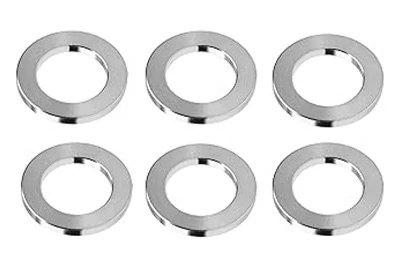

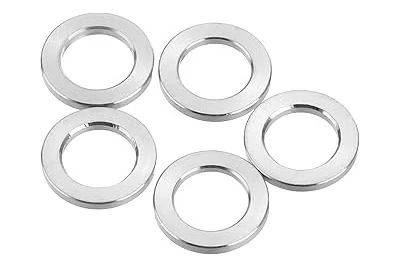

Titanium flat washer
Titanium flat washers are lightweight and corrosion-resistant components designed to evenly distribute loads and protect contact surfaces in aerospace, marine, and high-performance assemblies.
Contact us now
- We offer precision-stamped titanium flat washers with ±0.02 mm thickness tolerance.
- Made from Grade 2, Grade 5, and Grade 7 titanium, all tested to withstand 1000-hour salt spray.
- Stock available for M3–M16 sizes, with no minimum order quantity.
- Compliant with ISO 7089 / DIN 125, custom shapes and anodized finishes available.
Our full range of metric titanium flat washers covers M3–M48, with accurate dimensions and fast global shipping. Quick Quote
Titanium Flat Washer M3 (6mm O/D)
Titanium Flat Washer M3 (7mm O/D)
Titanium Flat Washer M4 (9mm O/D)
Titanium Flat Washer M5 (7mm O/D)
Titanium Flat Washer M5 (20mm O/D)
Titanium Flat Washer M5 (15mm O/D)
Titanium Flat Washer M6 (10mm O/D)
Titanium Flat Washer M6 (18mm O/D)
Titanium Flat Washer M6 (20mm O/D)
Titanium Flat Washer M6 (25mm O/D)
Titanium Flat Washer M8 (15mm O/D)
Titanium Flat Washer M8 (24mm O/D)
Titanium Flat Washer M8 (16mm O/D)
Titanium Flat Washer M10 (20mm O/D)
Titanium Flat Washer M12 (24mm O/D)
M14 Flat Washer 3mm Thick x 30mm O.D.
M16 Flat Washer 3mm Thick x 30mm O.D.
We also offer SAE standard titanium flat washers, with precisely matched inner and outer diameters to meet the high-precision assembly needs of imperial (inch-based) systems.
| Product | Thickness (inches) | Outer diameter (O.D. inches) |
|---|---|---|
| #8 Flat Washer | 0.025 | 0.375 |
| #10 Flat Washer | 0.027 | 0.4375 |
| 1/4" Flat Washer | 0.030 | 0.500 |
| 5/16" Flat Washer | 0.040 | 0.560 |
| 3/8" Flat Washer | 0.040 | 0.630 |
| 7/16" Flat Washer | 0.040 | 0.750 |
| 1/2" Flat Washer | 0.045 | 0.875 |
| 5/8" Flat Washer | 0.063 | 1.188 |
| 11/16" Flat Washer | 0.090 | 0.950 |
| 3/4" Flat Washer | 0.070 | 1.300 |
| 1" Flat Washer | 0.125 | 1.650 |
Titanium fender washers
Fender washers are flat washers with a much larger outer diameter compared to the center hole. They are commonly used on automotive fenders.
Contact us now
- Manufactured to DIN 9021 and ASTM F436 standards
- Wide-face design with O.D. up to 3× the I.D.
- Custom options available: multi-hole, special shapes, and anodized colors for complex structures
- M4–M20 sizes in stock, available from just one piece
We offer both metric and SAE standard sizes, ensuring hassle-free installation across systems.
M6 Fender Washer 1mm Thick x 19mm O.D.
M8 Fender Washer 1.27mm Thick x 22.35mm O.D.
M10 Fender Washer 2.2mm Thick x 30mm O.D.
M12 Fender Washer 3.18mm Thick x 40.64mm O.D.
M14 Extra Thick Washer 6mm Thick x 40mm O.D.
Feel free to contact us today for samples and a quote—we're here to meet all your titanium fender washer needs!Quick Quote
| Product | Thickness (inches) | Outer diameter (O.D. inches) |
|---|---|---|
| #10 Fender Washer | 0.027 | 0.625 |
| 1/4" Fender Washer | 0.040 | 0.750 |
| 5/16" Fender Washer | 0.050 | 0.750 |
| 3/8" Fender Washer | 0.125 | 1.125 |
| 1/2" Fender Washer | 0.125 | 1.600 |
| 5/8" Fender Washer | 0.125 | 2.500 |

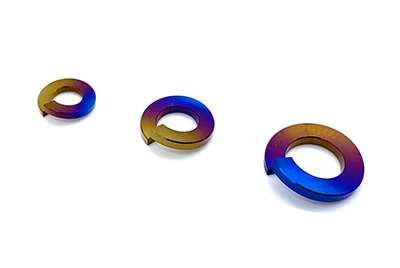

Titanium lock washer
Titanium lock washers feature serrated or split designs that physically bite into the contact surface, effectively preventing nuts from loosening under vibration or shock.
Contact us now
- Our lock washers offer strong mechanical grip through serrated and split structures.
- ISO 2320 tested: retain ≥80% preload after 30 cycles.
- Made from Grade 5 titanium, zero pitting after 1000-hour salt spray test.
- M4–M20 sizes in stock, no MOQ, global shipping within 48 hours.
Contact us now for samples and a quote—secure your critical connections with confidence!
M5 Lock Washer
M6 Lock Washer
M8 Lock Washer
M10 Lock Washer
M12 Lock Washer
M14 Lock Washer
We also offer standard sizes of titanium lock washers, ensuring secure connections that won't loosen under vibration or impact.
| #10 Lock Washer | 1/4" Lock Washer | 5/16" Lock Washer |
|---|---|---|
| 3/8" Lock Washer | 7/16" Lock Washer | 1/2" Lock Washer |
| 5/8" Lock Washer | 9/16" Lock Washer |

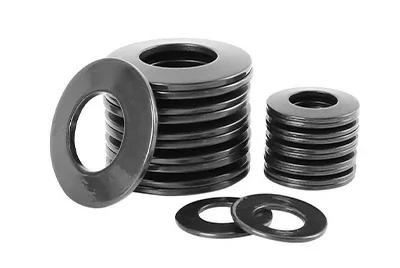

Titanium belleville (spring) washer
Titanium Belleville (spring) washers are conical-shaped elastic discs designed to deliver consistent, controllable preload in environments with vibration and thermal cycling.
Contact us now
- ISO 10289 tested: retain ≥85% preload after 30,000 cycles
- Made from Grade 5 titanium, stable performance from −200 °C to 400 °C
- Precision tolerances on ID, OD, and thickness within ±0.02 mm, available from 1 piece
Contact us now for samples and a quote—keep your critical connections optimally preloaded at all times! Quick Quote
Custom titanium washer machining
We offer fully customized titanium washers tailored to your drawings and functional needs—solving all your project-specific challenges with precision and speed.
- Customizable in size, shape, inner/outer diameter, thickness, and non-standard designs
- Fast production in 7–10 days with real-time progress tracking
- CNC machining and laser cutting with ±0.02 mm tolerance for high consistency
- Instantly upload STEP/DWG/DXF/IGES files for a quick quote
- 100% dimensional inspection + XRF material analysis; EN 10204 3.1 / 3.2 certification available
Contact us for a tailored solution and quote—bring your project to life faster, stronger, and more accurately! Quick Quote
We also supply titanium conical washers, drilled washers, countersunk washers, square washers, locking washers, and large-OD washers to meet all your specialty fastening needs.
Titanium Cone Washer
Titanium Drilled Washer

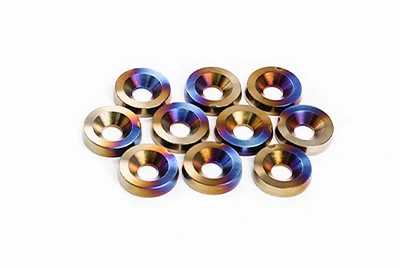

Titanium Countersunk Washer
Titanium Square Washer
Titanium Tab Washer
Titanium Large Diameter Washer
Top 5 titanium alloys for washers
| Alloy | Key advantages | When to choose it |
|---|---|---|
| CP-Ti (Grade 2) | Excellent formability, widely available, most cost-effective | When you need seawater corrosion resistance at the lowest cost |
| 6Al-4V (Grade 5) | Tensile strength ≥ 895 MPa, works up to 400 °C | For maximum strength-to-weight ratio and lightweight design |
| Ti-Pd (Grade 7) | 0.15% Pd resists pitting, zero corrosion in acidic solutions | For strong acids and chloride-containing environments |
| Ti Code 12 (Grade 12) | Mo-Ni alloyed, intergranular corrosion resistant, weldable | When both corrosion resistance and weldability are needed |
| 6Al-4V ELI (Grade 23) | Low interstitial Grade 5 version, superior cryogenic toughness | For applications requiring extremely high toughness |
Titanium washer application cases
Grade 2 titanium flat washers
Used on 6 MW wind turbine tower flanges in the North Sea. After 5 years of service, zero pitting or corrosion marks. No replacement needed during annual maintenance.
Contact us now
Grade 5 Belleville spring washer stacks
Each set reduces 120 g of weight. Maintains ≥92% braking torque under thermal fade. Zero failures in extreme heat and vibration.
Contact us nowGrade 2 titanium flat washers
Used on 6 MW wind turbine tower flanges in the North Sea. After 5 years of service, zero pitting or corrosion marks. No replacement needed during annual maintenance.
Contact us now
Samples available from 1 piece. Standard sizes ship in 48 hours. EN 10204 3.1 certificate included.
Contact us now for custom application solutions and a quote. Quick Quote
Surface treatment options for titanium washers

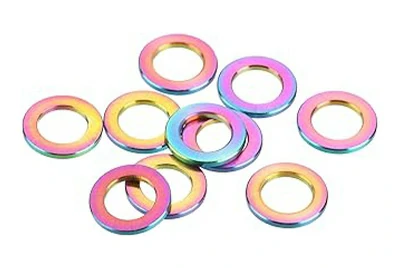

Color anodizing (up to 12 colors)
Ideal for applications requiring visual identification or decorative appeal, such as racing, bicycles, or custom enclosures.
Enhanced corrosion resistance after treatment. Samples available within 48 hours. Color variation controlled to ΔE < 3.
Micro-bead blasting + oxide film stabilization
Creates a matte surface that resists fingerprints and glare—perfect for military, electrical, or low-reflection environments.
Surface roughness controlled within Ra 0.8–1.6 µm. Standard sizes in stock.
DLC / PVD TiN coating
Adds an ultra-hard surface layer (hardness > 2000 HV) to reduce friction. Suitable for high-frequency assembly and high-preload connections.
Lead time: 7–10 days. Supplied with full test reports on friction coefficient and coating thickness.
PTFE solid lubricant coating
Prevents thread galling and reduces torque fluctuation—ideal for repeated assembly or thermal expansion environments.
Meets ASTM D2625 lubrication performance standards. Commonly used in aerospace, pump valves, and seals.
Electropolishing + ultrasonic cleaning
Critical for ultra-clean environments and medical implants.
Results in a spotless, particle-free surface. Complies with ISO 10993 biocompatibility standards. Widely used in medical and vacuum equipment.
All surface treatments come with batch traceability and test reports. We can recommend the best solution based on your operating conditions. Quick Quote
Matching titanium fasteners: one-stop sourcing guide
To help you get a complete set of high-performance titanium fasteners in one order, we highly recommend the following products in addition to titanium washers.
Titanium Bolts
Titanium Nuts
Titanium Screws
Titanium Threaded Rods
Titanium Rivets
Titanium Dowel Pins
We not only supply titanium bolts, titanium nuts, and titanium screws, but also a wide range of fasteners made from stainless steel, aluminum alloys, copper alloys, Inconel, Hastelloy, Monel, zirconium, tantalum, and other special alloys—covering your multi-material needs in extreme conditions like high temperature, corrosion, and lightweight applications.
If you require custom components, please contact our engineers for tailored support. Quick Quote
Buyer questions & technical answers
Do you have titanium washers in stock?
Yes. We stock standard M6 and M8 metric titanium washers, available from just one piece. Orders ship within 48 hours and can be delivered worldwide.
What types of titanium washers do you offer?
We supply flat washers, lock washers (including spring and serrated types), Belleville (spring) washers, fender washers, custom washers, and other specialty components. Materials include Grade 2, Grade 5, Grade 7, Grade 12, and Grade 23.
What's the difference between flat, lock, and spring washers?
- Flat washers distribute load and reduce friction—typically placed under bolts or nuts.
- Lock washers prevent loosening through serrations, splits, or special locking features.
- Spring washers (e.g., Belleville) provide extra preload to resist loosening from vibration—ideal for high-frequency assembly areas.
How are hardened washers different from regular washers?
Hardened washers are heat-treated for higher strength and typically used with high-strength bolts (e.g., Grade 8).
If the hardness or thickness is mismatched, excessive embedding can reduce clamping force. Our titanium washers are hardness- and thickness-matched for reliable performance.
What's the recommended torque for flat or Belleville washers?
25 N·m torque provides about 11 kN of clamping force. For this setup, we recommend low-friction surface treatments (such as PTFE coating or PVD DLC) to ensure torque consistency and repeatability.
