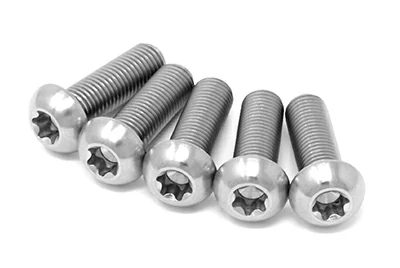

Titanium Torx Screws

Titanium torx screws are crafted from aerospace grade titanium alloy, known for their high strength-to-weight ratio, superior corrosion resistance, and precision engineering.

The Torx drive (ISO 10664) features a six-point star socket that delivers higher torque transfer, prevents cam-out, and reduces tool wear—perfect for critical applications where strength and appearance both matter.

Titanium torx screws specifications

• ASTM F468
• ISO 14583
• ISO 14581
• ISO 14584
• ISO 14580

Each order comes with an EN 10204 3.1 material test report, covering heat number, batch, chemical composition, and mechanical properties.

RoHS and REACH compliance declarations are also available on request.

Why choose titanium torx screws

Compared with Phillips or hex socket designs, the Torx/Hexalobular drive (ISO 10664) uses a star-shaped recess with larger contact area and more even force distribution.

It delivers higher torque and greatly reduces cam-out.

• High strength and lightweight (Grade 5 Ti-6Al-4V)
• Resistant to seawater and chemical corrosion for long service life
• ISO 10664 drive prevents stripping and ensures strong torque transfer
• Longer tool life and higher assembly efficiency
• Precision finish, smooth surface, durable and attractive

Titanium Torx screws also offer excellent tamper resistance and anti-galling performance.

Even under high torque or repeated assembly, they remain stable. CNC precision machining and strict tolerance control guarantee consistent head shape and clean appearance, making installation smooth and professional.

Quick Quote

Popular titanium torx screws

We offer custom production based on your drawings, special thread pitches, non-standard lengths, or unique surface finishes—ensuring every screw matches the exact needs of your project.

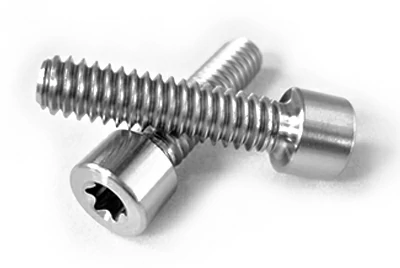

Titanium torx socket head cap screws(ISO 14579)

Ideal for load-bearing connections, titanium torx screws are widely used in clamping, flanges, brackets, and structural assemblies.

Metric: M3 / M4 / M5 / M6 / M8 / M10 (standard length 6–60 mm, longer sizes on request)

Inch: #6-32 / #8-32 / #10-24/32 / 1/4-20 / 5/16-18 / 3/8-16

• Cylindrical head provides high torque capacity and resists stripping
• Rolled threads improve fatigue strength and surface quality
• Finishes available: natural, polished, anodized, or DLC black

Applications: ideal for bicycle fork clamps, brake system flanges, engine or frame brackets, and stem clamps.

M4 Titanium Torx Socket Head Cap screws

M5 Titanium Torx Socket Head Cap screws

M6 Titanium Torx Socket Head Cap screws

Titanium cylindrical head Torx drive bolt M8×1.25×45 mm

Titanium cylindrical head Torx drive bolt M8×1.25×45 mm

Titanium cylindrical head Torx drive bolt M10×1.25×70 mm

Titanium cylindrical head Torx drive bolt M8×1.25×30 mm

Titanium cylindrical head Torx drive bolt M8×1.25×35 mm

Titanium cylindrical head Torx drive bolt M10×1.25×60 mm

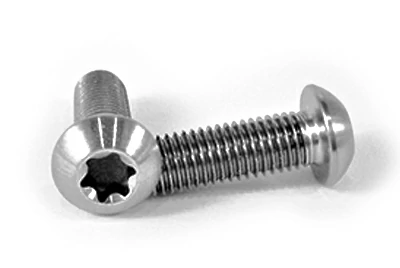

Titanium torx button head cap screws(ISO 14583)

The smooth low-profile head prevents scratching, making titanium torx screws ideal for trim covers, panels, and accessory connections.

• Metric: M4 / M5 / M6 / M8 (standard length 8–30 mm)
• Inch: #8-32 / #10-24/32 / 1/4-20

Typical applications: bicycle bottle cages, clamp rings, trim bolts, and electronic housing panels.

The low-profile or pan head design offers a clean look and is perfect for anodized color finishes. Note: due to head geometry, torque capacity is usually lower than cylindrical head types.

M4 Titanium Torx Button Head Cap screws

M6 Titanium Torx Button Head Caps screws

M5 Titanium Torx Button Head Socket Cap screws

Titanium Button Head Bolt M5x(0.80)x8mm Torx Drive

Titanium Button Head Bolt M5x(0.80)x15mm Torx Drive

Titanium Button Head Bolt M5x(0.80)x10mm Torx Drive

Torx screws dimension table

Can’t find the size you need? We can custom manufacture titanium torx screws to your drawings or requirements, including special thread pitches, non-standard lengths, and unique surface finishes.

Quick Quote

Titanium torx screws colors

Our titanium torx screws deliver not only strength and corrosion resistance but also a wide range of anodized color options.

With complete sets available, they make your upgrades or engineering projects easy and visually striking.

Natural Titanium

Blue

Black

Gold

Purple Haze

Anodized color

Ready-to-order kits

• Bicycle disc rotor bolts: M5 T25 × 12 / 18 piece set, optional pre-applied threadlocker.
• Motorcycle fork clamp bolts: M8 T45 × 4 piece kit, available from stock.
• Universal decoration set: M6 T30 × 6 pieces, multi-color options for full bike styling.

Titanium torx screws applications

Our titanium torx screws are widely used in motorcycles, bicycles, marine equipment, electronics, and engineering assemblies.

Motorcycle & motorsport

M8 T45 (20–60 mm) and M10 T50 (55–65 mm) bolts are commonly used in fork clamps and flange joints for secure high-strength fastening.

Brake disc kits include M5 T25 and M6 T30 (12/18 piece sets), with optional pre-applied medium-strength threadlocker to resist loosening under vibration.

For styling, button head screws (ISO 14583) with anodized colors create a unified visual effect across the bike.

Bicycle components

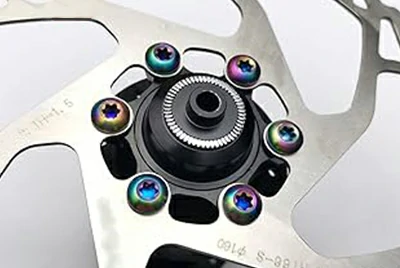

Disc rotors typically use M5 T25 (8–20 mm), available in 12 or 18 piece sets for easy installation.

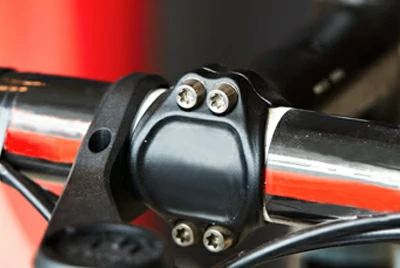

Bottle cages, stems, and clamp rings often use short M5/M6 screws with multi-color anodizing, balancing lightweight performance with appearance.

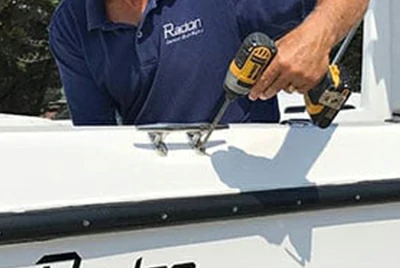

Marine & outdoor

Titanium offers long-term corrosion resistance, requiring almost no maintenance in seawater or outdoor conditions.

Common sizes include M6 and M8 for fixing structural parts. Foilite M8 torx bolts are already used in hydrofoil boards (such as Naish), directly fitting standard M8 hardware.

Electronics & engineering

The Torx drive (ISO 10664) reduces cam-out, making it ideal for electronic housings and devices that require repeated assembly and disassembly.

Popular sizes

• M5 / T25: disc rotors, bottle cages, stems (8–20 mm)
• M6 / T30: motorcycle and bicycle joints (10–30 mm)
• M8 / T45: motorcycle structural parts, fork clamps (20–60 mm, up to 80 mm in EU models)
• M10 / T50: heavy-load clamps and flange joints (55–65 mm)

Quality assurance and international compliance

• Made from Grade 5 (Ti-6Al-4V), offering high strength, light weight, and resistance to seawater and chemical corrosion. EN 10204 3.1 certificates are available, covering heat number, batch, chemical, and mechanical data.
• Anodized colors are tested for salt spray and weather resistance to ensure stability. Optional DLC black finish enhances wear and corrosion resistance.
• Screws are formed by cold/warm forging with rolled threads, reducing stress concentration and extending fatigue life.
• All Torx sockets are inspected with ISO 10664 GO/NO-GO gauges to guarantee drive accuracy.
• Every batch undergoes 100% visual inspection, dimensional sampling, and strict ΔE color control on anodized finishes.

All titanium torx screws come with full quality assurance and after-sales support, giving customers confidence in every purchase.

How to assemble titanium torx screws

To ensure the best performance during installation, follow these assembly guidelines.

Lubrication and threadlocker

When using anti-seize paste or grease, friction is reduced, so torque should be lowered by 20–40%.

For medium-strength threadlocker, always follow the manufacturer’s instructions.

When fastening titanium-to-titanium or titanium-to-stainless steel, light lubrication or proper-grade threadlocker is recommended to reduce galling risk.

Torque control

For safety-critical areas such as brake rotors, use medium-strength threadlocker and tighten in a diagonal, stepwise sequence.

After thermal cycles (such as braking or mechanical operation), re-check torque to ensure reliability.

Priority rule

If there is any conflict with these guidelines, always follow the torque specifications from the vehicle manufacturer, OEM, or assembly manual.

Titanium torx screws shipping and packaging

• Every batch is packed in stages: each small bag is labeled with size (M×L×T), color, batch/heat number, then placed into inner cartons and outer boxes.
• Standard stock items are available in small MOQs and can ship within 72 hours.
• Custom sizes, including anodized or coated screws, are usually completed within 5–12 working days.
• We support EXW, FOB, CIF, and DDP terms, with tax-inclusive delivery available to Europe, North America, Asia, and other global markets.
• Shipping costs are never hidden in product prices. They are clearly calculated based on weight, volume, and destination.
• All packages are handled by professional carriers, with flexible shipping options and real-time tracking for customers.

Related products – one stop service

To meet customer needs in different assembly scenarios, we not only supply titanium torx screws but also provide a one-stop range of other common titanium fasteners.

Titanium Set Screws

Titanium Socket Head Screws

Titanium Flat Head Screws

Titanium Button Head Screws

Titanium Self Tapping Screws

Titanium Wood Screws

Frequently asked questions

Are titanium screws stronger than steel screws?

Yes. Grade 5 titanium (Ti-6Al-4V) has a tensile strength of 900–1100 MPa, higher than most stainless steels, while being about 40% lighter.

Will anodized colors fade?

Under normal use, colors remain stable. In environments with strong UV exposure or aggressive chemical cleaning, natural finish or DLC black is recommended for maximum durability.

Can I choose between socket head and button head?

Yes. Socket head (ISO 14579) provides higher torque capacity and is ideal for structural parts, while button head (ISO 14583) offers a cleaner look, perfect for decorative or non-high-load areas.

Do you supply inch sizes and 3.1 certificates?

Yes. Inch sizes from #6 to 3/8-16 are available, along with EN 10204 3.1 certificates and RoHS/REACH compliance statements.
