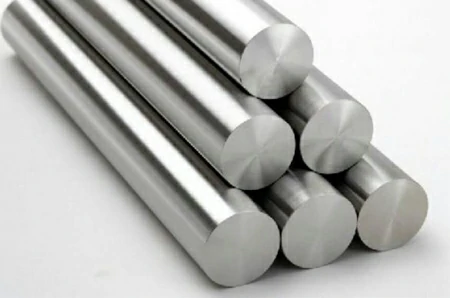

Titanium Round Bar

Titanium round bar for sale—Grade 2/Grade 5 stock. Cut-to-length and TGP finishing available. Supplied to ASTM B348/AMS with EN 10204 3.1 MTR. Contact suppliers for fast price and lead time.

Free samples Get A Quote

Titanium round bars offer high specific strength and corrosion resistance, meeting critical component needs from prototyping to mass production. As a reliable titanium round bar supplier, Chalco Titanium supplies products in accordance with international standards and provides full Material Test Reports (MTR). Optional TGP (Turned, Ground & Polished) finishing is available to shorten preparation time and improve assembly accuracy.

Specifications & Machining: Diameter Ø3–300 mm, length 3–6 m, with custom cutting available; supports chamfering, deep-hole gun drilling and honing (hollow bar).
Standards & Traceability: Strict compliance with ASTM / AMS / ISO standards, full batch traceability, and supply of EN 10204 3.1 / 3.2 certificates along with UT / PT / RT inspection reports.
Delivery Advantages: Popular sizes kept in stock, fast scheduling, reinforced export packaging, and engineering support for model selection and cost reduction.

Product Specifications

Chalco Titanium provides both metric and imperial dimensions. Customers can directly select popular sizes, or request cut-to-length and end-face machining. For projects requiring higher assembly precision, TGP (Turned, Ground & Polished) finishing and straightness control are available.

Metric Sizes

Diameter range: Ø3–Ø300 mm (larger sizes available upon forging evaluation)

Standard length: 3 m / 4 m / 6 m; Cut-to-Length available

Popular Sizes
6mm Titanium Round Bar	8mm Titanium Round Bar	10mm Titanium Round Bar
12mm Titanium Round Bar	16mm Titanium Round Bar	20mm Titanium Round Bar
25mm Titanium Round Bar	40mm Titanium Round Bar	50mm Titanium Round Bar

Imperial Sizes

Diameter range: 1/8"–12"

Standard length: 8–12 ft and 10 / 20 ft random length; Cut-to-Length available

Popular Sizes
1/4" Titanium Round Bar	3/8" Titanium Round Bar	1/2" Titanium Round Bar
3/4" Titanium Round Bar	1" Titanium Round Bar	1-1/4" Titanium Round Bar
1-1/2" Titanium Round Bar	2" Titanium Round Bar	2-1/2" Titanium Round Bar

Project Support

Cutting accuracy: Standard ±1.0–2.0 mm; precision cutting negotiable to ±0.5 mm

End-face & chamfering: Saw-cut ends / lathe-machined ends / double-end chamfering (commonly 45° × 0.2–1.0 mm, or per drawing)

Surface & roughness: Turned (Ra ≈ 3.2–6.3 μm) / TGP precision ground (Ra ≤ 1.6 μm) / Polished (down to ≤0.4 μm)

Tolerance & straightness: According to ASTM / ISO; h9 / h10 tolerances available; straightness ≤0.3–1.0 mm/m (depending on size and finishing grade)

Hollow Bar (Cost Reduction Option): Gun-drilled + honed; recommended bore ≥6 mm, minimum wall thickness ≥3 mm (smaller sizes require rigidity evaluation)

Identification & packaging: Individual heat number / QR code; small diameters bundled 20–50 kg, large diameters packed in wooden cases with end protectors

Weight & conversion: Based on density 4.43–4.51 g/cm³; weight calculator and size chart available for download

Grade Selection for Titanium Round Bar

The selection of titanium round bars depends on three key factors: working medium/temperature, strength/ductility requirements, and machining method. The most common decision is made between Grade 2 (Commercially Pure Titanium) and Grade 5 (Ti-6Al-4V), while other grades are used for specific corrosion-resistant or forming applications. Below are application-based recommendations, with quick links to each grade page for comparison and ordering.

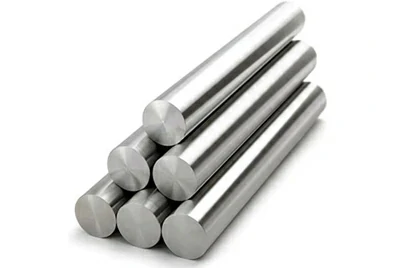

Grade 2 Titanium Round Bar

Corrosion-resistant, weldable, formable — suitable for most structural components that do not require extremely high strength.

Standards: ASTM B348 / SB-348, ASTM F67

Applications: Chemical and marine equipment, pump shafts and valve stems...

Click to view stock list

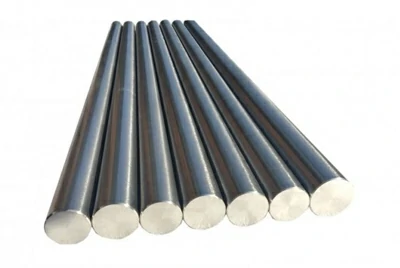

Grade 5 (Ti-6Al-4V)

High strength-to-weight ratio, ideal for weight-sensitive parts requiring high load-bearing capacity.

Standards: ASTM B348 / SB-348, AMS 4928

Applications: Aerospace structural components, fastener blanks, high-strength shafts

Click to view stock list

Titanium Round Bar – Commercially Pure (CP Titanium)

Grade 1 (CP-1)

Highest ductility, lowest strength. Ideal for deep drawing, bending, expansion forming in chemical equipment and heat exchangers. Excellent weldability, reduces tooling and rework in large-formed parts.
Grade 3 (CP-3)

Higher strength than Gr2, with good corrosion resistance and weldability. Suitable for slightly higher-load chemical equipment parts and cost-sensitive structural components.
Grade 4 (CP-4)

Highest strength among CP grades. Suitable for high-stress components in corrosive environments. Common in chemical, marine applications, and pressure parts.

Titanium Round Bar – Titanium Alloys

Grade 6 (Ti-5Al-2.5Sn)

Offers good medium-temperature stability for temperature-sensitive components. Ideal when higher strength retention than Grade 5 is required, but without using high-temperature superalloys.
Grade 7 (Ti-0.15Pd)

Palladium addition significantly improves corrosion resistance in reducing acids and chloride environments. Commonly used for internal parts of chemical equipment; mechanical properties are similar to Grade 2.
Grade 9 (Ti-3Al-2.5V)

Medium strength and cold-formable, offering a balance of strength and workability. Widely used for lightweight structural components and tubing systems.
Grade 12 (Ti-0.3Mo-0.8Ni)

Enhanced resistance to crevice corrosion and hot halide environments, ideal for heat exchangers, reaction vessels, and tube sheet assemblies.
Grade 16 (CP-Ti + Pd)

Similar to Grade 7 in Pd-enhanced corrosion resistance but uses a CP titanium base. Ideal for upgrading chemical equipment where higher corrosion resistance is needed while maintaining good formability and weldability.
Grade 23 (Ti-6Al-4V ELI)

Based on Grade 5 with Extra Low Interstitials (ELI), offering superior fracture toughness and fatigue resistance. Used in medical implants and high fatigue-safety components.
Grade 20 (Beta-C)

High-strength β titanium alloy, suitable for high-load structures and critical connectors. Offers a better strength-toughness balance in extreme applications compared to conventional α-β alloys.
Ti-6242 (Ti-6Al-2Sn-4Zr-2Mo)

Offers higher medium-to-high temperature strength and creep resistance than Grade 5. Widely used in aerospace structures needing thermal stability, such as front hot-section parts and compressor casings.
Ti-5553 (Ti-5Al-5V-5Mo-3Cr)

High-strength β titanium alloy, suitable for load-bearing structures and high-strength fasteners. Mechanical properties can be finely controlled through quenching, tempering, and aging processes.

Not sure which titanium grade to choose?

Send us your working conditions, dimensions, and technical drawings — our engineers will recommend the most suitable grade and tolerance solution for your application.

Quick Quote

Typical Applications & Case Studies

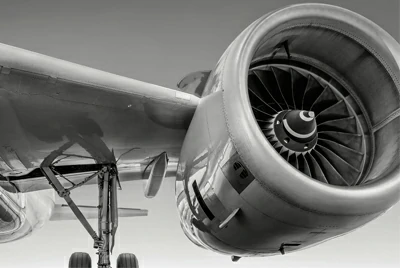

Aerospace & Defense

Used for fan/compressor-related structural parts, brackets, rings, and high-strength fastener blanks, with strict requirements on batch consistency and assembly accuracy. TGP (Turned, Ground & Polished) bars are often selected to ensure straightness and tight fit tolerances, with ultrasonic testing (UT) performed according to drawings.

Recommended Grades: Gr5 (Ti-6Al-4V) as the primary choice; Gr23 (ELI) when higher fatigue resistance and toughness are required.

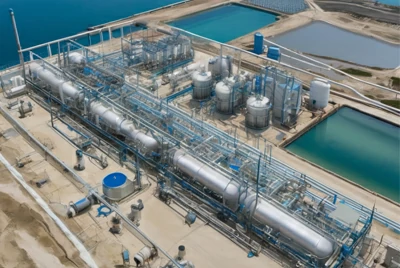

Chemical / Marine / Desalination

Applied in pump shafts, valve stems/cores, flange hubs, and heat exchanger components, operating under long-term exposure to seawater, halide solutions, or reducing acids. Surface cleaning options include pickling or sandblasting. Hollow Bar is recommended for valve bodies and sleeves to reduce machining time and material waste.

Recommended Grades: Gr2 (general corrosion resistance), Gr7 (Pd) for reducing acids, Gr12 (Mo+Ni) for crevice corrosion and hot brine environments.

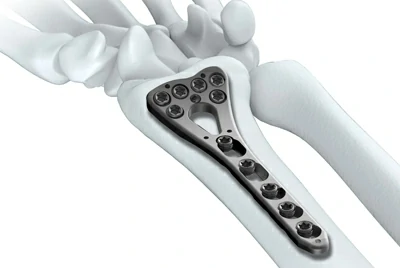

Medical Devices & Implants

Used for orthopedic screw/plate blanks, instrument handles, clamps, and small mechanical components, requiring biocompatibility and toughness. Often supplied with anodized color coding for size/grade identification, along with clean packaging and full batch traceability.

Recommended Grades: Gr23 (Ti-6Al-4V ELI) as first choice; Gr5 commonly used for surgical instruments. In compliance with ASTM F136 / F67 / ISO 5832-3.

Pumps, Valves & Fluid Control

For pump shafts, guide rods, bushings/cylinders, and locating pins where dimensional precision and corrosion life are critical. TGP precision-ground shafts are preferred; Hollow Bar (gun-drilled + honed) is used for bushings and cylinders to improve machining efficiency.

Recommended Grades: Gr2 for standard media; Gr7 / Gr12 for aggressive environments.

Automotive / EV / Motorsport

Used in lightweight high-strength connectors, small shafts, and chassis components where low weight, high performance, and short lead time are required. Cut-to-Length and TGP assembly-ready bars are available to reduce machining allowance.

Recommended Grades: Gr5 as the primary alloy; Gr9 (Ti-3Al-2.5V) can be considered for cold-formed small components.

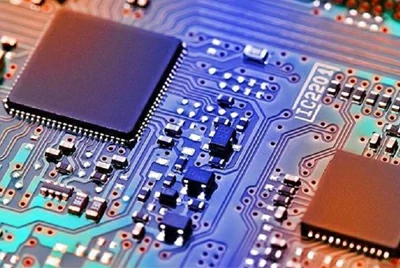

Semiconductor Wet Process / Laboratory Equipment

Used for corrosion-resistant fasteners, fixtures, support components requiring low contamination and cleanability. Available with oil-free cleaning and individual bar traceability to minimize cross-contamination.

Recommended Grades: Gr2 for general use; Gr7 for chloride- or acid-containing environments.

Production Capability & Precision Processing

We offer a one-stop manufacturing system from billet to near-net-shape products, covering the full process of forming – heat treatment – machining – finishing – inspection – packaging, minimizing coordination costs and delivery uncertainties.

Forming Lines: Open-die forging (large diameter / small-batch or customized billets), hot extrusion (medium diameter / medium-volume with excellent dimensional consistency), hot rolling (small–medium diameter / mass production / cost efficient); the optimal process route is chosen based on project requirements to balance material density and dimensional stability.
Heat Treatment & Microstructure Control: Standard annealing and stress-relief are routinely applied; α-case removal is available; key components can be processed with HIP (Hot Isostatic Pressing) and full process recording if required.
Machining Capability: CNC turning and milling, deep-hole gun drilling + honing for Hollow Bar (thick-wall tube/shaft applications), keyway/spline/knurling machining, threading/tapping, end-face turning and chamfering; custom tooling and small-batch prototyping available per drawings.
Finishing & Assembly-Level Precision: TGP (Turned, Ground & Polished) centerless grinding for shaft-type and mating components; tolerance can be controlled to h9/h10 levels, and straightness per engineering requirements; surface finishes available in turned, polished or sandblasted.
Inspection & Documentation: Dimensional and geometric sampling inspection; UT / PT / RT non-destructive testing and batch traceability available when required; Material Test Reports (MTR) are provided with delivery.

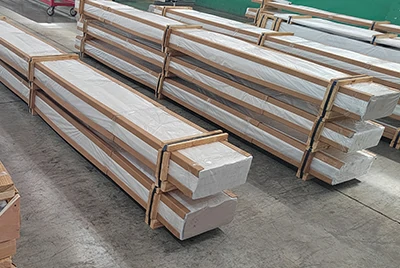

Delivery & Packaging: Popular sizes in stock for fast scheduling; Cut-to-Length and end protection available; reinforced export wooden crates, clean packaging, and multi-destination split shipment options.

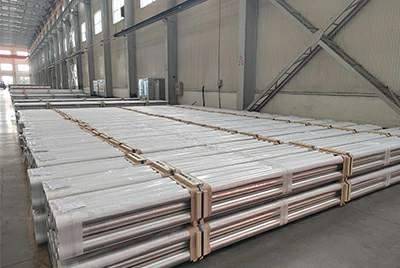

Production Capability & Precision Processing

Titanium Round Bar Suppliers

Chalco is built on three core pillars — standardized compliance, stable delivery, and engineering-oriented support — to minimize project uncertainties. Instead of emphasizing equipment details, we prove reliability through verifiable processes and traceable results.

Compliance & Documentation — Ready in One Step

Supplied in full accordance with ASTM / AMS / ISO standards, accompanied by EN 10204 3.1 / 3.2 Material Test Reports (MTR). Optional UT (ASTM B594) / PT / RT inspection reports and FAI (First Article Inspection) documentation are available when required. Quality systems meet ISO 9001 / AS9100 (where applicable), and subcontracted processes are screened according to NADCAP requirements.

Delivery Certainty & Inventory Assurance

Core specifications are supported by Safety Stock; urgent orders can be processed through "in-stock + cut-to-length” service. Typical inquiries are answered within 24 hours, and standard documentation is provided within 48 hours (depending on order). Dual sourcing and annual frame agreements help stabilize lead time and suppress price fluctuations.

End-to-End Traceability & Error Prevention

Heat numbers are shipped per batch, with barcodes/QR codes for individual piece traceability. Material receiving—processing—dispatch stages are strictly cross-checked to ensure "three-point consistency.” Packing lists correspond one-to-one with certificate numbers. Third-party inspection and port-of-arrival verification are supported.

Engineering Support — Avoid Unnecessary Trial & Error

Material grade selection, standard matching, and risk alerts (e.g., medium compatibility or temperature limits) are provided based on real application scenarios. Machining and assembly-level tolerance recommendations are included to help you eliminate hidden costs. Cross-region projects are assigned a dedicated engineer with weekly progress reporting.

Titanium Round Bar Stock

GR2 Titanium Round Bar Stock List

Standards: ASTM B348 / ASME SB-348

Suitable for chemical and marine corrosion-resistant components, pump shafts, valve stems, flange hubs, and heat exchanger parts.

Alloy	Diameter / mm	Length / mm	Alloy	Diameter / mm	Length / mm
GR2 Titanium Round Bar	2	3000	GR2 Titanium Round Bar	30	3000
GR2 Titanium Round Bar	2.5	3000	GR2 Titanium Round Bar	31	3000
GR2 Titanium Round Bar	3	3000	GR2 Titanium Round Bar	32	3000
GR2 Titanium Round Bar	3.5	3000	GR2 Titanium Round Bar	33	3000
GR2 Titanium Round Bar	4	3000	GR2 Titanium Round Bar	34	3000
GR2 Titanium Round Bar	4.5	3000	GR2 Titanium Round Bar	35	3000
GR2 Titanium Round Bar	5	3000	GR2 Titanium Round Bar	36	3000
GR2 Titanium Round Bar	5.5	3000	GR2 Titanium Round Bar	37	3000
GR2 Titanium Round Bar	6	3000	GR2 Titanium Round Bar	38	3000
GR2 Titanium Round Bar	6.5	3000	GR2 Titanium Round Bar	39	3000
GR2 Titanium Round Bar	7	3000	GR2 Titanium Round Bar	40	3000
GR2 Titanium Round Bar	8	3000	GR2 Titanium Round Bar	41	3000
GR2 Titanium Round Bar	9	3000	GR2 Titanium Round Bar	42	3000
GR2 Titanium Round Bar	9.5	3000	GR2 Titanium Round Bar	43	3000
GR2 Titanium Round Bar	10	3000	GR2 Titanium Round Bar	44	3000
GR2 Titanium Round Bar	11	3000	GR2 Titanium Round Bar	45	3000
GR2 Titanium Round Bar	12	3000	GR2 Titanium Round Bar	46	3000
GR2 Titanium Round Bar	12.7	3000	GR2 Titanium Round Bar	47	3000
GR2 Titanium Round Bar	13	3000	GR2 Titanium Round Bar	48	3000
GR2 Titanium Round Bar	13.5	3000	GR2 Titanium Round Bar	49	3000
GR2 Titanium Round Bar	14	3000	GR2 Titanium Round Bar	50	3000
GR2 Titanium Round Bar	15	3000	GR2 Titanium Round Bar	52	3000
GR2 Titanium Round Bar	15.875	3000	GR2 Titanium Round Bar	55	3000
GR2 Titanium Round Bar	16	3000	GR2 Titanium Round Bar	60	3000
GR2 Titanium Round Bar	16.5	3000	GR2 Titanium Round Bar	65	3000
GR2 Titanium Round Bar	17	3000	GR2 Titanium Round Bar	70	3000
GR2 Titanium Round Bar	18	3000	GR2 Titanium Round Bar	75	3000
GR2 Titanium Round Bar	19	3000	GR2 Titanium Round Bar	80	3000
GR2 Titanium Round Bar	20	3000	GR2 Titanium Round Bar	85	3000
GR2 Titanium Round Bar	21	3000	GR2 Titanium Round Bar	90	3000
GR2 Titanium Round Bar	22	3000	GR2 Titanium Round Bar	95	3000
GR2 Titanium Round Bar	23	3000	GR2 Titanium Round Bar	100	3000
GR2 Titanium Round Bar	24	3000	GR2 Titanium Round Bar	105	3000
GR2 Titanium Round Bar	25	3000	GR2 Titanium Round Bar	110	3000
GR2 Titanium Round Bar	26	3000	GR2 Titanium Round Bar	115	3000
GR2 Titanium Round Bar	27	3000	GR2 Titanium Round Bar	120	3000
GR2 Titanium Round Bar	28	3000	GR2 Titanium Round Bar	125	3000
GR2 Titanium Round Bar	29	3000	GR2 Titanium Round Bar	130	3000

GR5 Titanium round bar stock list

Standards: ASTM B348 / ASME SB-348, AMS 4928

Used for aerospace front-section structures and fastener blanks, automotive/EV lightweight high-strength parts, and general high-strength shafts.

Alloy	Diameter / mm	Length / mm	Alloy	Diameter / mm	Length / mm
GR5 Titanium Round Bar	2	3000	GR5 Titanium Round Bar	30	3000
GR5 Titanium Round Bar	2.5	3000	GR5 Titanium Round Bar	31	3000
GR5 Titanium Round Bar	3	3000	GR5 Titanium Round Bar	32	3000
GR5 Titanium Round Bar	3.5	3000	GR5 Titanium Round Bar	33	3000
GR5 Titanium Round Bar	4	3000	GR5 Titanium Round Bar	34	3000
GR5 Titanium Round Bar	4.5	3000	GR5 Titanium Round Bar	35	3000
GR5 Titanium Round Bar	5	3000	GR5 Titanium Round Bar	36	3000
GR5 Titanium Round Bar	5.5	3000	GR5 Titanium Round Bar	37	3000
GR5 Titanium Round Bar	6	3000	GR5 Titanium Round Bar	38	3000
GR5 Titanium Round Bar	6.5	3000	GR5 Titanium Round Bar	39	3000
GR5 Titanium Round Bar	7	3000	GR5 Titanium Round Bar	40	3000
GR5 Titanium Round Bar	8	3000	GR5 Titanium Round Bar	41	3000
GR5 Titanium Round Bar	9	3000	GR5 Titanium Round Bar	42	3000
GR5 Titanium Round Bar	9.5	3000	GR5 Titanium Round Bar	43	3000
GR5 Titanium Round Bar	10	3000	GR5 Titanium Round Bar	44	3000
GR5 Titanium Round Bar	11	3000	GR5 Titanium Round Bar	45	3000
GR5 Titanium Round Bar	12	3000	GR5 Titanium Round Bar	46	3000
GR5 Titanium Round Bar	12.7	3000	GR5 Titanium Round Bar	47	3000
GR5 Titanium Round Bar	13	3000	GR5 Titanium Round Bar	48	3000
GR5 Titanium Round Bar	13.5	3000	GR5 Titanium Round Bar	49	3000
GR5 Titanium Round Bar	14	3000	GR5 Titanium Round Bar	50	3000
GR5 Titanium Round Bar	15	3000	GR5 Titanium Round Bar	52	3000
GR5 Titanium Round Bar	15.875	3000	GR5 Titanium Round Bar	55	3000
GR5 Titanium Round Bar	16	3000	GR5 Titanium Round Bar	60	3000
GR5 Titanium Round Bar	16.5	3000	GR5 Titanium Round Bar	65	3000
GR5 Titanium Round Bar	17	3000	GR5 Titanium Round Bar	70	3000
GR5 Titanium Round Bar	18	3000	GR5 Titanium Round Bar	75	3000
GR5 Titanium Round Bar	19	3000	GR5 Titanium Round Bar	80	3000
GR5 Titanium Round Bar	20	3000	GR5 Titanium Round Bar	85	3000
GR5 Titanium Round Bar	21	3000	GR5 Titanium Round Bar	90	3000
GR5 Titanium Round Bar	22	3000	GR5 Titanium Round Bar	95	3000
GR5 Titanium Round Bar	23	3000	GR5 Titanium Round Bar	100	3000
GR5 Titanium Round Bar	24	3000	GR5 Titanium Round Bar	105	3000
GR5 Titanium Round Bar	25	3000	GR5 Titanium Round Bar	110	3000
GR5 Titanium Round Bar	26	3000	GR5 Titanium Round Bar	115	3000
GR5 Titanium Round Bar	27	3000	GR5 Titanium Round Bar	120	3000
GR5 Titanium Round Bar	28	3000	GR5 Titanium Round Bar	125	3000
GR5 Titanium Round Bar	29	3000	GR5 Titanium Round Bar	130	3000

Please send us the required grade, diameter × length, and precision/surface request (e.g. TGP, h9/h10), along with your delivery location. Our engineers will provide a practical selection and quotation within 24 hours.

In-stock (available titanium round bar stock) can be immediately reserved, cut, and dispatched.

引导转化按钮

Price & Procurement Guide

The price of titanium round bars depends on the grade (e.g. Grade 2 / Grade 5), diameter and length, surface and tolerance (Turned / TGP / polished), machining and testing options (cut-to-length, chamfering, Hollow Bar, UT), as well as order quantity and delivery time.

In-stock materials (titanium round bar stock) usually offer better pricing and faster delivery, while planned projects are recommended to lock prices based on production schedules.

Pricing Methods

Pricing is available per kg or per piece/per meter; it is recommended to estimate first using a weight calculator (ρ ≈ 4.51 g/cm³).

Information Required for a Quick Quotation (Reply Within 24 Hours)

Grade / Standard (e.g. Gr2 / Gr5; ASTM B348 or AMS 4928)
Size & quantity (diameter × length, number of pieces or total weight required)
Surface & precision (Turned / TGP, tolerance such as h9 / h10, straightness requirement)
Machining / Testing (cut-to-length, chamfering, Hollow Bar, UT level, certificates 3.1 / 3.2)
Delivery location & target lead time (Incoterms / port of destination)

Procurement & Cost Reduction Tips

Prioritize standard stock diameters and standard lengths, combined with cut-to-length service.
For shaft components, choose TGP to improve assembly accuracy; for valve bodies/sleeves, consider Hollow Bar to reduce machining waste.
Combine batches or sign annual frame agreements to stabilize cost and lead time.

Quick Quote

Frequently Asked Questions (FAQ)

Are you a manufacturer or a partnered production line? Can you supply one-stop service?

We operate with a "self-owned + partnered production line” model, covering open-die forging, hot extrusion, hot rolling, as well as TGP precision grinding and Hollow Bar (gun drilling + honing). Key processes can be recorded and third-party witnessed. A single-window supply approach makes project coordination easier and more reliable.

Not sure whether to choose Grade 2 or Grade 5 (or Grade 23)?

Start from "medium + strength.” • For chemical, seawater or other corrosive environments requiring good weldability → choose Grade 2. • For high-strength lightweight structures or fastener billets → choose Grade 5. • If toughness and fatigue reliability are critical → choose Grade 23 (ELI). Send us your working conditions, and we will recommend a practical and applicable grade.

What are the common stock sizes? Can you provide cut-to-length service?

Metric Ø3–Ø300 mm and imperial 1/8"–12" cover mainstream specifications. Cut-to-Length is available; standard cutting tolerance is ±1.0–2.0 mm, and precision cutting can be negotiated to ±0.5 mm. Popular sizes are supported with safety stock, and urgent orders can be inserted into production.

What tolerance and straightness can you achieve for assembly-level precision?

TGP (Turned, Ground & Polished) is available. Typical straightness can be controlled to ≤0.5 mm/m, and tolerances can be negotiated to h9/h10. End-face turning, chamfering, keyway or thread machining can be performed according to drawings.

Can you supply Hollow Bar? Is it suitable for valve bodies or sleeves?

Yes. Thick-wall Hollow Bars are manufactured through gun drilling + honing, which significantly reduces chips and machining time. Recommended bore diameter is ≥6 mm, minimum wall thickness ≥3 mm. Smaller dimensions may require rigidity and runout evaluation.

Which standards do you follow? What documents are provided with delivery?

Titanium bars comply with ASTM B348 / ASME SB-348. Aerospace applications follow AMS 4928 (Grade 5). Medical materials follow ASTM F67 / F136 / ISO 5832-3. Documents include EN 10204 3.1/3.2 (MTR), and optional UT (ASTM B594) / PT / RT inspection reports.

How is delivery scheduled? Do you provide export packaging?

We support small-batch quick delivery and stable batch production scheduling. Multiple-destination and split shipments are available. Export packaging includes reinforced wooden crates, end protection caps, VCI or clean packaging, with complete documentation and support for port inspection and customs clearance.

Any questions about purchasing?
